Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 WP4449154 Screw   (Replaces: 4449154) Special Order $ 8.16

2 WP9760771 Element, Broil   (Replaces: 4456103) In-Stock Immediately $ 116.41

3 WP3195996 Grill, Broiler   (Replaces: 3195996) Special Order $ 98.65

4 WP3196076 Pan, Broiler   (Replaces: 3196076) Special Order $ 330.36

5 3181534 Rack, Roasting Appelez-nous -
9 4451583 Motor Convection Special Order $ 140.53

10 4452226 Blade, Fan Special Order $ 30.89

11 WPW10160821 Cover, Fan   (Replaces: 4448418) Special Order $ 285.59

12 4452227 Nut Special Order $ 33.98

13 WP9760769 Element, Convection   (Replaces: 4452157) In-Stock Immediately $ 337.88

14 4455035 Tray, Hidden Bake Appelez-nous -
15 4450039 Cover, Access Special Order $ 92.11

16 WP4449154 Screw, 8-32 X .440   (Replaces: 4449154) Special Order $ 8.16

17 WP4449809 Screw, 8-18 X 3/8   (Replaces: 4449809) In-Stock Immediately $ 7.55


    View Diagram in Separate Window     Print Icon   Print Part List

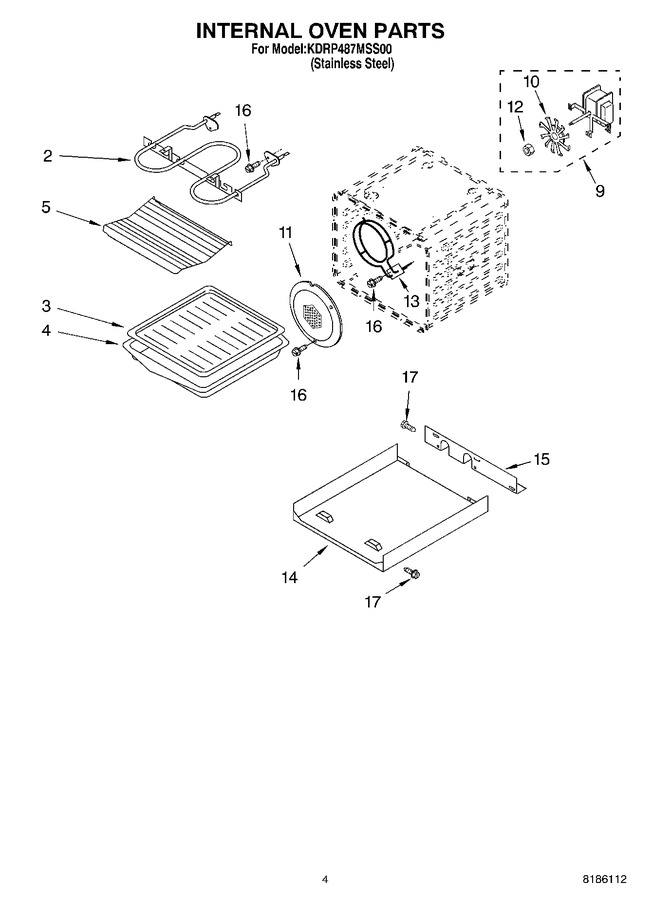

Diagram for KDRP487MSS00
