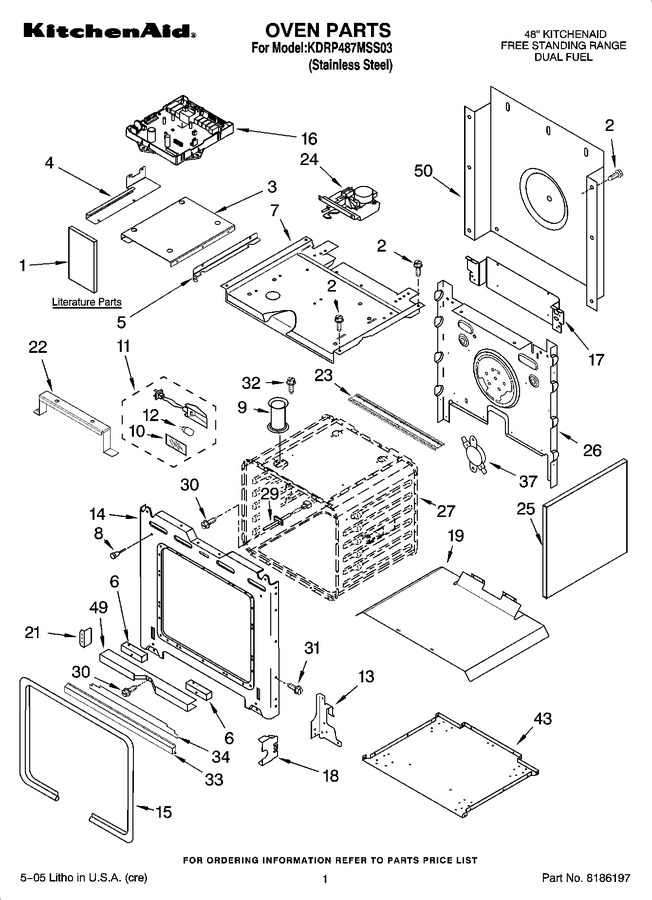

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts


06 - Cooktop Parts


07 - Burner Box And Manifold Parts


08 - Chassis Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9759441		Conversion Instructions		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
1	8302571		Installation Instructions		Appelez-nous	-
1	8301284		Use & Care Guide		Appelez-nous	-
1	8302546		Tech Sheet		Appelez-nous	-
2	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 7.55
3	8301573		Bracket, Control Support		Appelez-nous	-
4	8302394		Bracket, Control (left Side)		Appelez-nous	-
5	8301574		Bracket, Control (right Side)		Appelez-nous	-
6	4452260		Spacer, Foam		Appelez-nous	-
7	8302191		Top, Chassis		Appelez-nous	-
8	4448520		Bumper, Door				$ 22.25
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 14.23
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
13	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
13	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
14	9760754		Frame, Front   (Replaces: 4455610)				$ 132.66
15	WP4455380		Gasket, Door   (Replaces: 4455380)			Immediately	$ 174.79
16	8301182		Control, Zodiac (assist, Rt Side)		Appelez-nous	-
16	8301583		Control, Zodiac (assist Lft Side)		Appelez-nous	-
17	8301254		Filler, Rear		Appelez-nous	-
18	4452152		Bracket, Mounting				$ 35.18
19	4451476		Support, Insulation		Appelez-nous	-
21	4455510		Bracket, Support		Appelez-nous	-
22	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
22	4457204		Support, Wiring		Appelez-nous	-
23	8301159		Channel, Support		Appelez-nous	-
24	WP9760889		Latch, Motorized   (Replaces: 9759525)			Immediately	$ 345.08
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
26	4452232		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	WP4449154		Screw, 8-32 X .440   (Replaces: 4449154)				$ 8.16
31	WP4449040		Screw, 8-18 X 3/8   (Replaces: 4449040)				$ 6.78
32	W11233072		Screw, 8-18 X 1/2   (Replaces: 3196176)			Immediately	$ 14.72
33	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
33	4457319		Vent, Bottom Lower		Appelez-nous	-
34	8300825		Insulation, Bottom Vent		Appelez-nous	-
37	WP9759242		Thermostat (tod) (temp.) Spst   (Replaces: 9759242)			Immediately	$ 85.57
43	8302289		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 189.22
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
50	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 189.64
