SELECT A DIAGRAM

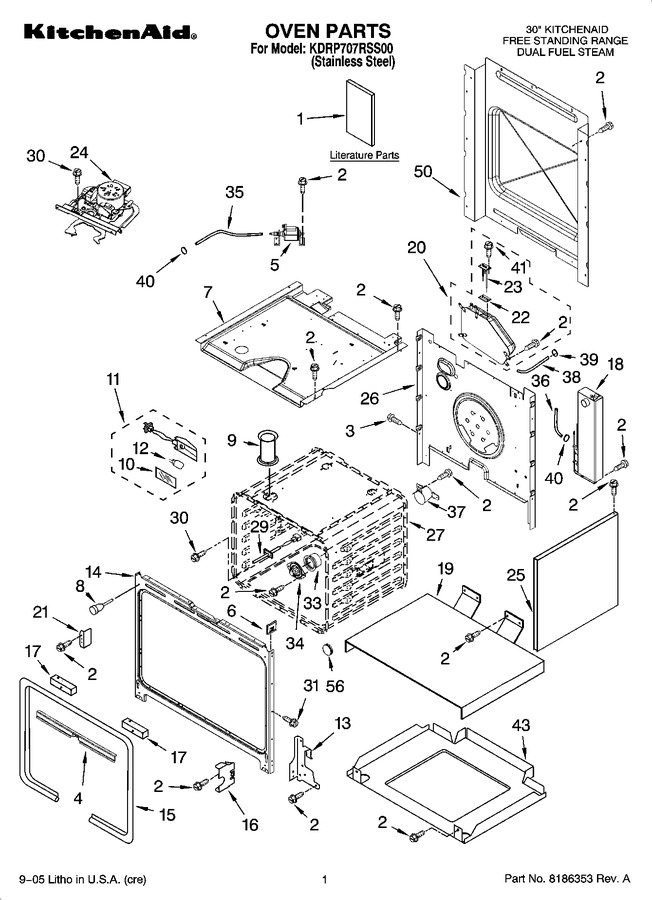

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts


06 - Cooktop Parts


07 - Burner Box And Manifold Parts


08 - Chassis Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9759133		Safer Cooking Tips		Appelez-nous	-
1	9762575		Cook Book		Appelez-nous	-
1	9758978		Installation Instructions		Appelez-nous	-
1	9761936		Use & Care Guide		Appelez-nous	-
1	9758979		Tech Sheet		Appelez-nous	-
1	9759441		Conversion Instructions		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
2	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 7.55
3	WP4449743		Screw, 8-32 X 3/8   (Replaces: 4449743)				$ 7.55
4	9758595		Retainer, Gasket		Appelez-nous	-
5	8186360		Pump, Drain (120v) (includes Clamps)   (Replaces: 9761101)				$ 358.62
6	WP4450118		Nut,(u-type Clip)   (Replaces: 4450118)				$ 8.78
7	9758832		Top, Chassis		Appelez-nous	-
8	4448520		Bumper, Door				$ 22.25
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 14.23
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
13	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
13	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
14	9762237		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	4452152		Bracket, Mounting				$ 35.18
17	4452260		Spacer, Foam		Appelez-nous	-
18	8186352		Boiler   (Replaces: 9758598)				$ 345.43
19	4451478		Support, Insulation				$ 54.10
20	9761145		Reservoir (includes Clamps)		Appelez-nous	-
21	4455510		Bracket, Support		Appelez-nous	-
22	9762243		Gasket, Sensor		Appelez-nous	-
23	9761107		Sensor, Level		Appelez-nous	-
24	9762606		Latch, Motorized				$ 33.04
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
26	9758830		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	WP4449154		Screw, 8-32 X .440   (Replaces: 4449154)				$ 8.16
31	WP4449040		Screw, 8-18 X 3/8   (Replaces: 4449040)				$ 6.78
33	9758597		Orifice, Boiler				$ 42.82
34	9758596		Cover, Orifice Boiler		Appelez-nous	-
35	8186365		Hose, (blue) (pump To Outlet)   (Replaces: 9762138)		Appelez-nous	-
36	8186366		Hose (gray) (boiler To Pump)   (Replaces: 9762139)		Appelez-nous	-
37	WP4450249		Thermostat (tod) (150c) Spst   (Replaces: 4450249)			Immediately	$ 211.50
38	8186367		Hose (green) (boil`r To Resv`r)   (Replaces: 9761154)		Appelez-nous	-
39	WP489503		Clamp   (Replaces: 9761147)			Immediately	$ 11.29
40	WP489503		Clamp   (Replaces: 9761146)			Immediately	$ 11.29
41	9762844		Screw		Appelez-nous	-
43	4455649		Base, Chassis		Appelez-nous	-
50	9758583		Cover, Back				$ 215.30
56	4452337		Insulation Bottom Vent		Appelez-nous	-
56	4448982		Button, Plug		Appelez-nous	-
56	N/A		Following Parts Not Illustrated Insulation		Appelez-nous	-
56	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
56	4450365		Insulation, Back				$ 70.95

    View Diagram in Separate Window       Print Part List
