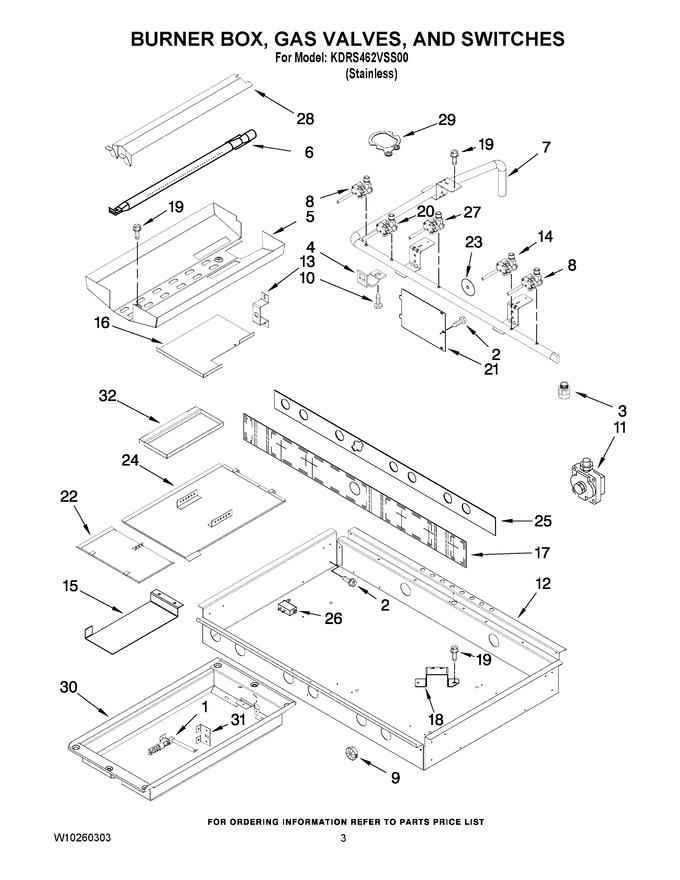

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10268770 | Ignitor, Grill |
|
$ 161.69 | |||||
| 2 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 3 | 4453116 | Adapter (male) |
|
$ 179.43 | |||||
| 3 | 4453115 | Adapter, Female |
|
$ 126.70 | |||||
| 4 | W10189107 | Bracket, Valve |
|
- | |||||
| 5 | W10269564 | Deflector, Grill |
|
$ 173.90 | |||||
| 6 | W10223569 | Burner, Grill |
|
$ 258.87 | |||||
| 7 | W10115897 | Manifold |
|
- | |||||
| 8 | W10250407 | Valve, Single (lr & Rf) |
|
- | |||||
| 9 | W10189097 | Bushing, Burner Box |
|
$ 8.00 | |||||
| 10 | W10189140 | Screw, Valve Mtg |
|
$ 6.82 | |||||
| 11 | W10293267 | Regulator, Pressure |
|
$ 313.91 | |||||
| 12 | W10273341 | Burner Box |
|
- | |||||
| 13 | W10250475 | Bracket, Grill Orifice Mounting |
|
- | |||||
| 14 | WPW10385583 | Valve, Single (rr) (Replaces: W10284547) |
|
Immediately | $ 332.10 | ||||
| 15 | W10272139 | Shield, Grease |
|
- | |||||
| 16 | W10250474 | Drip Tray Holder |
|
- | |||||
| 17 | W10247075 | Insulation, Grill |
|
- | |||||
| 18 | W10280796 | Bracket, Burner ( Rr) |
|
- | |||||
| 18 | W10115929 | Bracket, Burner (lf, Lr & Rf) |
|
- | |||||
| 19 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 20 | WPW10371235 | Valve, Gas (lf) (Replaces: W10250410) |
|
Immediately | $ 268.41 | ||||
| 21 | W10115843 | Cover, Ignition |
|
- | |||||
| 22 | W10250468 | Drip Tray, Router 2 |
|
- | |||||
| 23 | W10189177 | Seal, Switch Cover |
|
$ 10.00 | |||||
| 24 | W10250470 | Drip Tray, Router 1 |
|
$ 128.77 | |||||
| 25 | W11688578 | Insulation (Replaces: W10145622) |
|
- | |||||
| 26 | W11601369 | Reignitor, Gas (Replaces: W10116108) |
|
Immediately | $ 67.35 | ||||
| 27 | W10305285 | Valve, Gas Grill (Replaces: W10250409) |
|
$ 364.35 | |||||
| 28 | W10250462 | Flame Spreader |
|
$ 92.34 | |||||
| 29 | 8286930 | Gasket, Orifice |
|
$ 95.73 | |||||
| 30 | WPW10267890 | Module, Grill (Replaces: W10267890) |
|
$ 471.83 | |||||
| 31 | W10250461 | Bracket, Grill Ignitor |
|
- | |||||
| 32 | W10250473 | Drip Tray |
|
$ 224.39 | |||||
| NI | W10115908 | Tubing, Gas Rr |
|
- | |||||
| NI | W10115910 | Tubing, Gas (lf & Rf) |
|
$ 176.20 | |||||
| NI | W10115911 | Tubing, Gas (lf - Simmer) |
|
$ 188.34 | |||||
| NI | W10158807 | Tubing, Gas (grill) |
|
$ 94.65 | |||||
| NI | W10280797 | Tubing, Gas Lr |
|
- | |||||
| NI | W10269191 | Regulator, Tube-pressure |
|
$ 217.69 |
