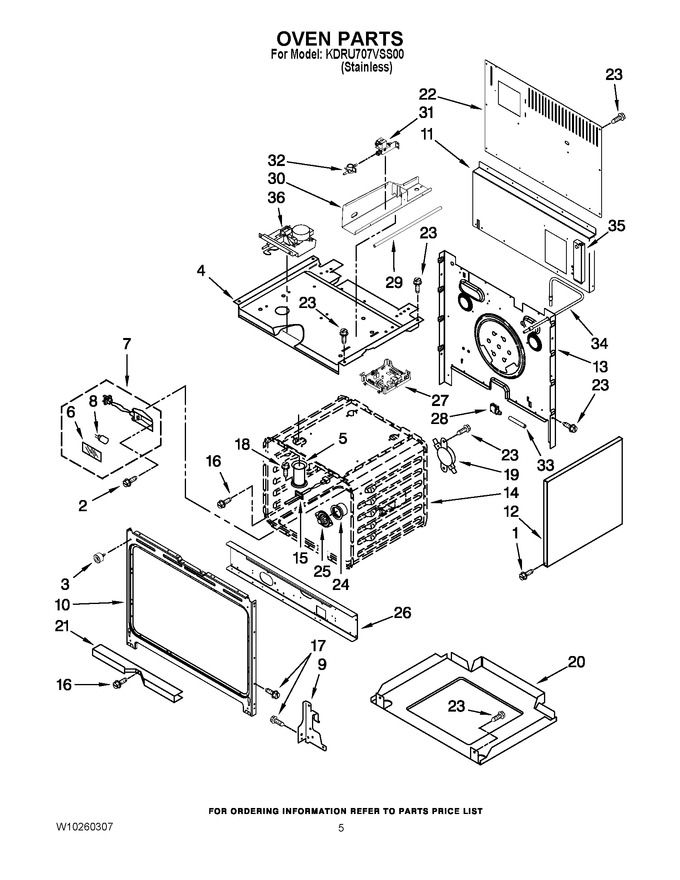

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 7.55 | ||||
| 2 | 4449748 | Screw |
|
$ 14.23 | |||||
| 3 | W10105790 | Assembly, Bumper |
|
$ 7.41 | |||||
| 4 | W10267897 | Top, Chassis |
|
- | |||||
| 5 | W10288061 | Tube, Vent |
|
$ 115.94 | |||||
| 6 | W10169756 | Lens, Light |
|
$ 42.19 | |||||
| 7 | WPW10307114 | Oven Light Assy (Replaces: W10307114) |
|
Immediately | $ 116.01 | ||||
| 8 | WPW10169757 | Bulb, Light (Replaces: W10169757) |
|
Immediately | $ 47.38 | ||||
| 9 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 131.74 | ||||
| 9 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 127.70 | ||||
| 10 | W10160866 | Frame, Front |
|
- | |||||
| 11 | W10145399 | Panel, Back Bottom |
|
- | |||||
| 12 | W10269205 | Side, Chassis (right) |
|
$ 235.53 | |||||
| 12 | W10269206 | Side, Chassis (left) |
|
$ 235.28 | |||||
| 13 | W10273154 | Back, Chassis |
|
- | |||||
| 14 | N/P | Liner, Oven (not Serviced) |
|
- | |||||
| 15 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 95.83 | ||||
| 16 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 17 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 18 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 19 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 111.84 | ||||
| 20 | W10235537 | Base, Chassis |
|
- | |||||
| 21 | W11368870 | Retainer, Gasket (Replaces: W10157511) |
|
$ 24.91 | |||||
| 22 | W10269207 | Panel, Back Top |
|
- | |||||
| 23 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 24 | W10153096 | Orifice, Boiler |
|
- | |||||
| 25 | 9758597 | Orifice, Boiler Slip Fit |
|
$ 42.82 | |||||
| 26 | W10269194 | Support, Channel |
|
- | |||||
| 27 | WPW10496836 | Appliance, Manager (Replaces: W10116188) |
|
$ 467.20 | |||||
| 28 | W10194453 | Switch, Pressure |
|
$ 254.00 | |||||
| 29 | WPW10076930 | Hose, Transfer (Replaces: W10076930) |
|
$ 23.82 | |||||
| 30 | W10160877 | Encloseure, Steam Valve |
|
- | |||||
| 31 | W10111418 | Valve, Solenoid |
|
$ 151.74 | |||||
| 32 | WPW10076760 | Sensor, Conductivity (Replaces: W10076760) |
|
$ 210.13 | |||||
| 33 | W10116067 | Hose, Silicone |
|
- | |||||
| 34 | W10160828 | Tube, Copper Steam |
|
- | |||||
| 35 | 8186352 | Assembly, Boiler (Replaces: 9758598) |
|
$ 345.43 | |||||
| 36 | W11029221 | Latch, Motorized (Replaces: W10195935) |
|
Immediately | $ 327.65 | ||||
| NI | W11684730 | Steam Valve (insulation, Wrap) (Replaces: 4449316) |
|
$ 124.85 | |||||
| NI | W10246053 | Steam Valve (insulation, Back) |
|
- |
