SELECT A DIAGRAM

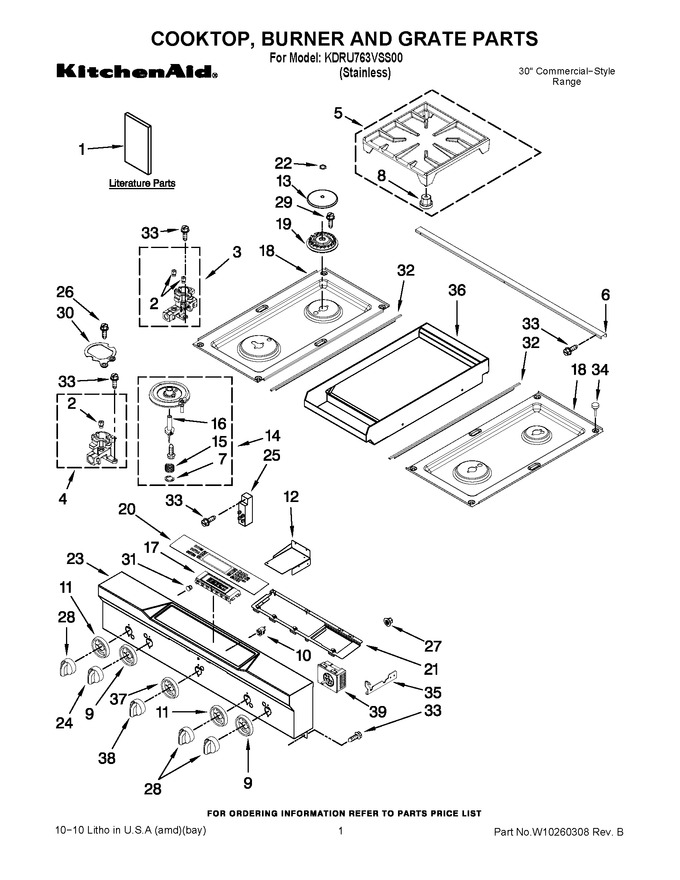

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches


03 - Oven Parts


04 - Chassis Parts


05 - Top Venting Parts


06 - Oven Door Parts


07 - Internal Oven Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10285549		Tech Sheet (use & Care Guide)		Appelez-nous	-
1	W10284341		Tech Sheet (english)		Appelez-nous	-
1	W10284345		Tech Sheet (french)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10284348		Installation Instructions		Appelez-nous	-
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
2	W10160179		Orifice (lf - High)				$ 75.77
2	W10791075		Orifice (rr)   (Replaces: W10282663)				$ 103.68
2	W10160232		Orifice (lr & Rf)				$ 45.77
2	W10160185		Orifice (lf - Low)				$ 73.54
3	WPW10160187		Orifice Holder (dual - Lf)   (Replaces: W10160187)				$ 81.57
4	W10160234		Orifice Holder (lr & Rf)				$ 51.39
4	W10282659		Orifice Holder (rr)				$ 40.50
5	WPW10115928		Grate, Burner   (Replaces: W10115928)				$ 201.41
6	W10269217		Trim, Island				$ 308.49
7	W10160825		Clip, Electrode				$ 52.85
8	W10185266		Rubber, Foot   (Replaces: 8286695)			Immediately	$ 15.47
9	W10261510		Bezel, Front				$ 55.11
10	W10116151		Indicator, Housing				$ 79.16
11	W10261512		Bezel, Rear		Appelez-nous	-
12	W10367052		Bracket, Spark Module   (Replaces: W10137323)		Appelez-nous	-
13	WPW10115952		Cap, Burner (rr)   (Replaces: W10115952)				$ 119.01
13	WPW10160229		Cap, Burner (lr & Rf)   (Replaces: W10160229)			Immediately	$ 114.80
13	WP8286816		Cap, Burner (lf)   (Replaces: 8286816)				$ 110.74
14	WPW10320937		Base, Burner (rr)   (Replaces: W10250405)				$ 157.22
14	W10189082		Base, Burner (lr & Rf)		Appelez-nous	-
15	8286863		Spring, Electrode (rr)				$ 76.92
15	W10160826		Spring, Electrode (lf, Lr & Rf)		Appelez-nous	-
16	WPW10160235		Electrode (lr & Rf)   (Replaces: W10160235)				$ 42.08
16	WPW10145991		Electrode (rr)   (Replaces: W10145991)			Immediately	$ 84.47
16	W10250406		Electrode (lf (dual))				$ 30.27
17	W10298117		Module, User Interface		Appelez-nous	-
18	W10189104		Cooktop (left)				$ 146.58
18	W10282192		Cooktop (right)				$ 349.88
19	WPW10250459		Burner Head (lf)   (Replaces: W10250459)			Immediately	$ 154.23
19	W10250458		Burner Head (lr & Rf)		Appelez-nous	-
19	WPW10282515		Burner Head (rr)   (Replaces: W10282515)			Immediately	$ 149.87
20	W10116103		Keypad				$ 390.11
21	W10250477		Bracket, User Interface		Appelez-nous	-
22	W10115953		Nut, Burner				$ 9.78
23	W10284666		Assembly, Console		Appelez-nous	-
24	W11244176		Knob, Control (dual - Lf)   (Replaces: W10250389)				$ 78.37
25	WPW10475147		Module, Spark   (Replaces: 7431P038-60)			Immediately	$ 238.24
26	8286930		Gasket, Orifice Holder				$ 95.73
27	7103P166-60		Nut, Hex				$ 18.56
28	W11177673		Knob, Control   (Replaces: W10250391)				$ 90.55
29	W11404293		Screw   (Replaces: W10078270)			Immediately	$ 14.74
30	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
31	W10116115		Len, Indicator Light				$ 7.86
32	W10291193		Trim		Appelez-nous	-
33	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
34	4448520		Bumper (12)				$ 22.25
35	W10130760		Bracket, Moving Console (left)				$ 75.94
35	W10130759		Bracket, Moving Console (right)				$ 75.94
36	W10625221		Griddle, Module   (Replaces: W10276498)				$ 1,457.32
37	W10261515		Bezel, Griddle		Appelez-nous	-
38	W10250390		Knob, Griddle				$ 36.98
39	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 351.97

    View Diagram in Separate Window       Print Part List
