Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 241439 Tube & Connector Assy Appelez-nous -
2 241546 Connector - Vertical Conduit Special Order $ 31.57

3 241392 Conduit - Vertical Appelez-nous -
4 279570 Retainer - Conduit   (Replaces: 241286) In-Stock Immediately $ 8.89

5 241105 Retainer - Manifold Appelez-nous -
6 241051 Manifold - Upper Arm Appelez-nous -
7 116277 Special Screw - Hex Washer Hd Appelez-nous -
8 241332 Bearing - Arm (bottom) Appelez-nous -
9 241095 Bearing - Arm (top) Appelez-nous -
10 241055 Wash/rinse Arm Assy Appelez-nous -
11 241107 Clip - Arm Guard Appelez-nous -
12 115958 Receiver - Manifold Tube Appelez-nous -
13 116277 Special Screw - Hex Washer Hd Appelez-nous -
14 116029 Tube (manifold To Receiver) Appelez-nous -
15 241056 Guard - Arm Appelez-nous -
16 241331 Washer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

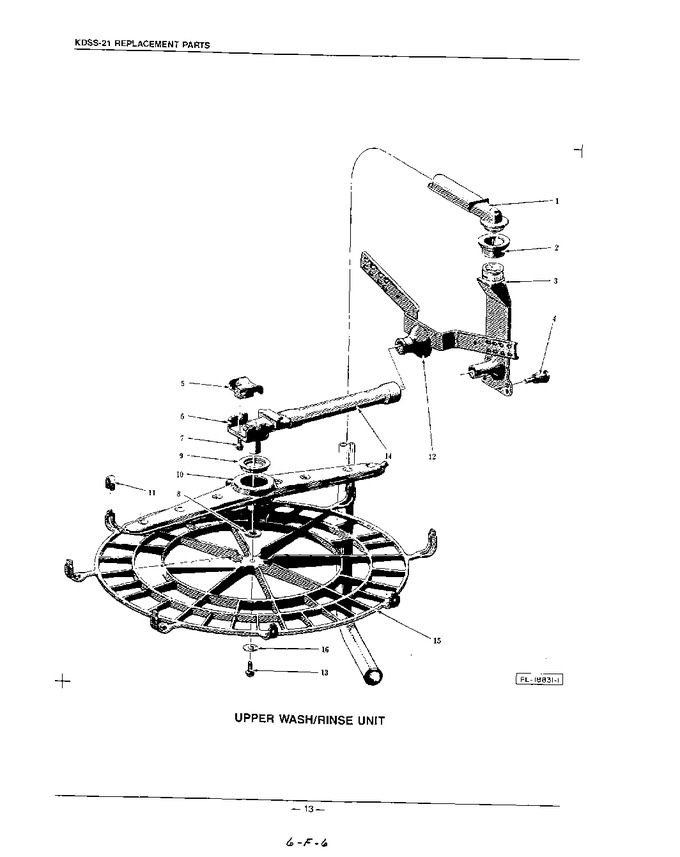

Diagram for KDSS21
