SELECT A DIAGRAM

01 - Agitator, Drive Bell, Washtub And Hub


02 - Bearing Assy And Transmission Assy


03 - Cabinet Top, Door, And Door Switch


04 - Connection Blocks And Extractor Tool


05 - Control Panel


06 - Front Panel, Base, And Special Tools


07 - Miscellaeous Information


08 - Mixing Valve And Hose


09 - Motor, Belt, Pump, And Idler Assy


10 - Outer Tub, Cover, Pressure Tube

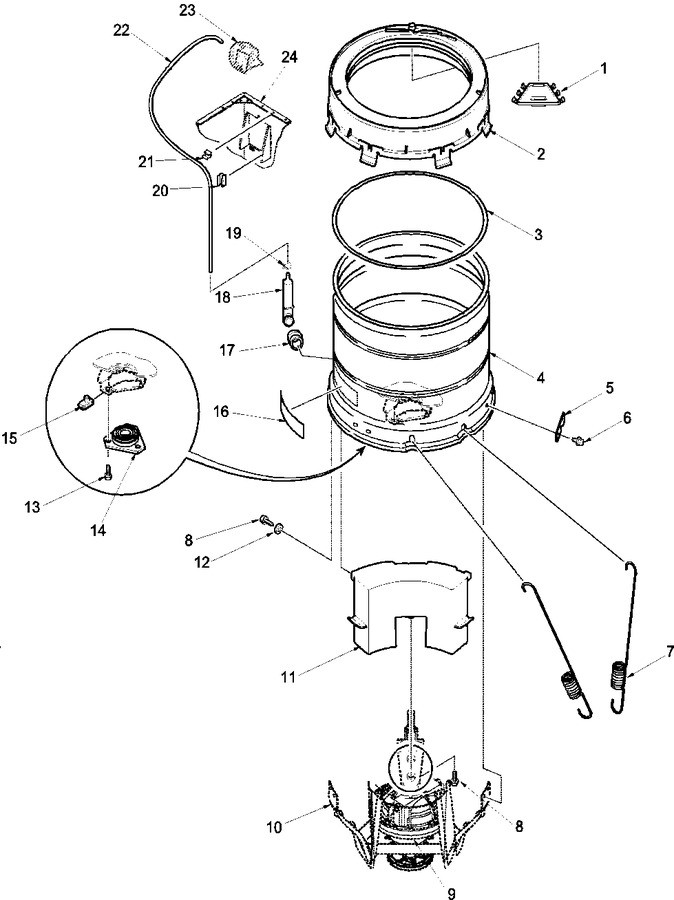

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	39079		Channel,water		Appelez-nous	-
2	39169		Cover, Outer Tub   (Replaces: 37502)				$ 73.42
3	38359		Gasket, Tub Cover Large				$ 13.42
4	37813P		Tub, Outer-tall				$ 552.94
5	27926		Plate,leg .063		Appelez-nous	-
6	35369		Screw			Immediately	$ 7.72
7	37575		Module Springs			Immediately	$ 10.74
8	37766		Screw		Appelez-nous	-
9	Y00000000		See Note See Note Transmission Assy		Appelez-nous	-
10	Y00000000		See Note See Note Weldment And Bearing Assy(includes 28944r Bearing)		Appelez-nous	-
11	205612		Assy, Counterweight   (Replaces: 38769)			Immediately	$ 40.40
12	37767		Washer, Aluminum .28x		Appelez-nous	-
13	3400500		Screw, Cap   (Replaces: 36991)			Immediately	$ 13.37
14	WP40004201P		Bearing Housing Assembly   (Replaces: 27182)				$ 117.79
15	27222		Nut,retainer 5/16-18				$ 7.72
16	500049		Sticker		Appelez-nous	-
17	29175		Grommet				$ 9.51
18	COMM PART		Pressure Bulb   (Replaces: 30907)		Appelez-nous	-
19	WP596669		Hose Clamp   (Replaces: Y22294)			Immediately	$ 8.40
20	36985		Clip, Hose		Appelez-nous	-
21	21036		Clip,cable				$ 62.49
22	29213		Pressure Hose		Appelez-nous	-
23	Y00000000		See Note See Note Pressure Switch		Appelez-nous	-
24	34475WP		Cabinet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
