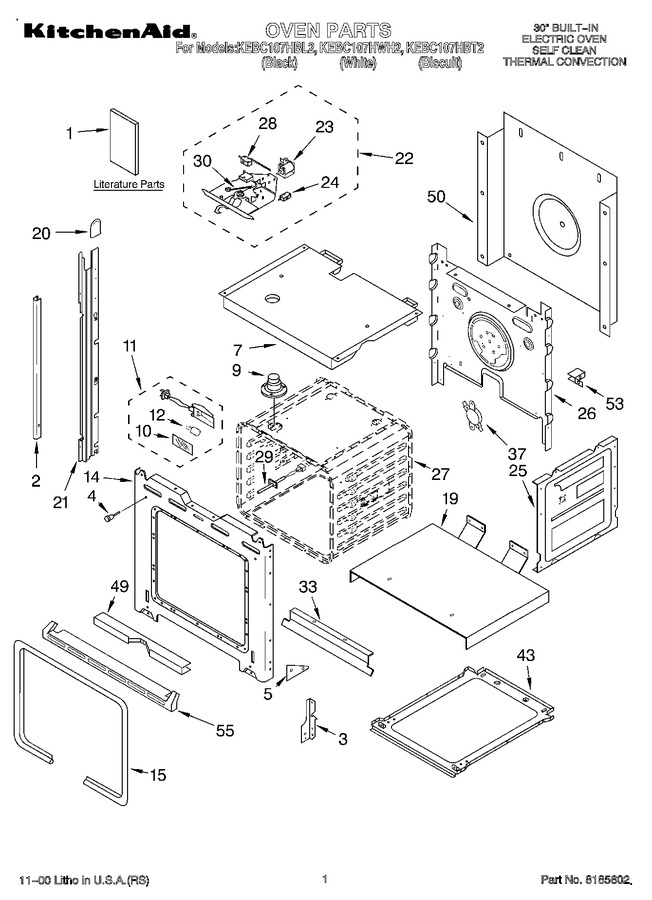

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT4450411		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4451952		Literature Parts (use & Care Guide (oven))		Appelez-nous	-
1	LIT4451876		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT4449264		Literature Parts (easy Set Guide)		Appelez-nous	-
1	LIT3192225		Literature Parts (installation/ Undercounter)		Appelez-nous	-
1	LIT4450841		Literature Parts (installation/ Mwo Trim Kit)		Appelez-nous	-
2	4455428		Trim, Side (right Hand) (white)				$ 104.48
2	4455376		Trim, Side Left (black)		Appelez-nous	-
2	4455429		Trim, Side (left Hand) (white)		Appelez-nous	-
2	4455378		Trim, Side (left Hand) (biscuit)		Appelez-nous	-
2	4455424		Trim, Side (right Hand) (biscuit)		Appelez-nous	-
2	4455377		Trim, Side Right (black)				$ 232.13
3	4455722		Reciever, Hinge (left Hand)				$ 37.47
3	4455723		Reciever, Hinge (right Hand)				$ 37.24
4	4448520		Bumper, Door				$ 22.25
5	WP4455509		Bracket, Support   (Replaces: 4455509)				$ 94.01
7	4455286		Top, Chassis		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 14.23
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4451740		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	814371		Rail, Side (right)   (Replaces: 4450579)				$ 127.79
21	814372		Rail, Side (left)   (Replaces: 4450580)				$ 126.74
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
22	4451896		Latch Assembly				$ 163.41
23	4452224		Solenoid		Appelez-nous	-
24	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
24	4452312		Microswitch N.c.				$ 90.43
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452234		Back, Chassis		Appelez-nous	-
28	4451426		Microswitch		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	4451537		Spring, Latch		Appelez-nous	-
33	4452496		Deflector, Vent		Appelez-nous	-
37	WP9759242		Thermostat (tod) (temp.) Spst   (Replaces: 4452223)			Immediately	$ 85.57
43	4455530		Base, Chassis		Appelez-nous	-
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
53	4449845		Bracket-support		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
55	4450365		Insulation, Back				$ 70.95
55	4455445		Trim, Bottom (white Model)		Appelez-nous	-
55	4455447		Trim, Bottom (biscuit)		Appelez-nous	-
55	4452152		Trim, Bottom (bracket, Mounting Bottom Trim)				$ 35.18
55	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
55	4455443		Trim, Bottom (black)		Appelez-nous	-
