SELECT A DIAGRAM
01 - Oven, Literature
02 - Oven Door
03 - Internal Oven

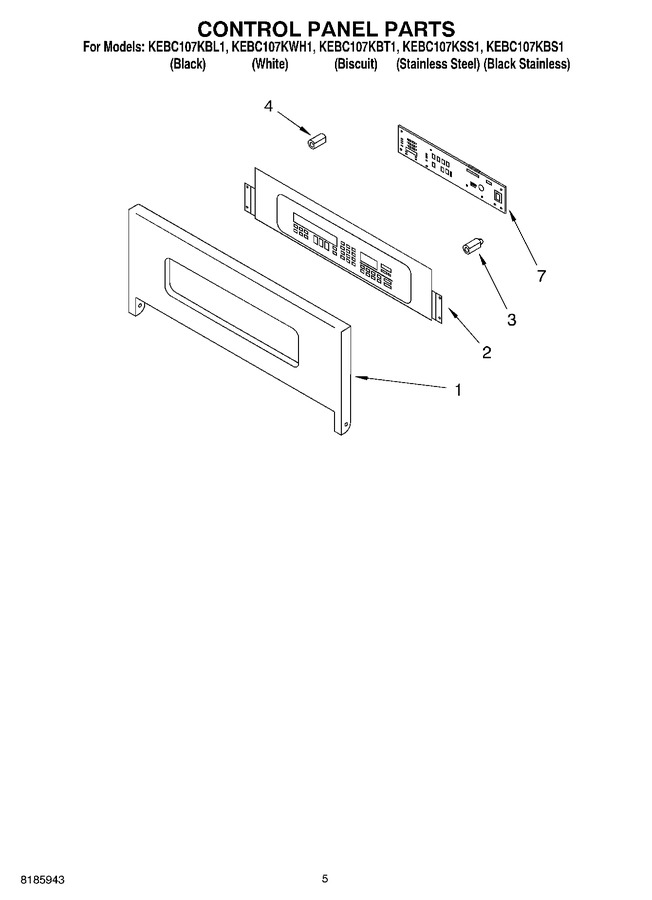

04 - Control Panel
05 - Top Venting
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4452604 | Panel, Control (black) |
|
- | |||||
| 1 | 4452605 | Panel, Control (white) |
|
- | |||||
| 1 | 4452974 | Panel, Control (biscuit) |
|
- | |||||
| 1 | 4451791 | Panel, Control Stainless Steel |
|
- | |||||
| 2 | 4455405 | Switch, Membrane (black) |
|
- | |||||
| 2 | 4455411 | Switch, Membrane (white) |
|
- | |||||
| 2 | 4455417 | Switch, Membrane (biscuit) |
|
- | |||||
| 2 | 4452363 | Switch Membrane (stainless Steel) |
|
- | |||||
| 3 | 4452248 | Insulator, Board |
|
- | |||||
| 4 | 4452249 | Insulator, Board Support |
|
- | |||||
| 7 | 4452894 | Microcomputer |
|
- | |||||
| 7 | 3400406 | Screw |
|
- |
