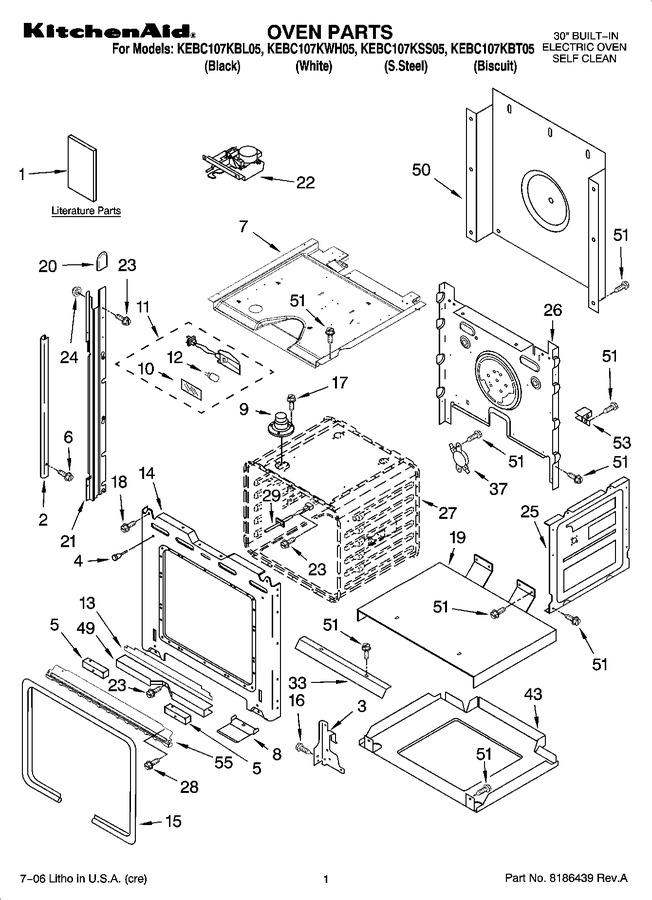

01 - Oven Parts


02 - Control Panel Parts


03 - Internal Oven Parts


04 - Oven Door Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300651		Installation Instructions		Appelez-nous	-
1	8304062		Use & Care Guide (english)		Appelez-nous	-
1	9759133		Safer Cooking Tips		Appelez-nous	-
1	8304069		Use & Care Guide (french)		Appelez-nous	-
1	8302067		Tech Sheet (oven) (english)		Appelez-nous	-
1	8302069		Tech Sheet (oven) (french)		Appelez-nous	-
1	8303946		Installation/ Undercounter		Appelez-nous	-
1	8301928		Installation, Mwo Trim Kit		Appelez-nous	-
1	4449264		Easy Set Guide (english)		Appelez-nous	-
1	4448687		Easy Set Guide (french)		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
2	4455377		Trim, Side Right (black)				$ 232.13
2	4455376		Trim, Side (left Hand) (black Model)		Appelez-nous	-
2	W10144984		Trim, Side (left Hand) (s.steel Model)   (Replaces: 4452080)				$ 148.16
2	4455429		Trim, Side (left Hand) (white Model)		Appelez-nous	-
2	4455378		Trim, Side (left Hand) (biscuit)		Appelez-nous	-
2	4455428		Trim, Side (right Hand) (white Model)				$ 104.48
2	4455424		Trim, Side (right Hand) (biscuit Model)		Appelez-nous	-
2	WPW10144983		Trim, Side (right Hand) (s.steel Model)   (Replaces: 4452079)				$ 164.76
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	4448520		Bumper, Door				$ 22.25
5	4452490		Spacer, Foam				$ 34.83
6	WP8281236		Screw   (Replaces: 8281236)				$ 8.16
7	8303099		Top Chassis				$ 70.97
8	W10145009		Deflector, Vent (s.steel)   (Replaces: 4452489)				$ 81.61
8	4455807		Deflector, Vent (black)		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452163		Lens, Light				$ 12.33
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
13	4452337		Insulation Bottom Vent		Appelez-nous	-
14	9759060		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
17	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
18	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	814372		Rail, Side (left Side)   (Replaces: 4450580)				$ 126.74
21	814371		Rail, Side (right Side)   (Replaces: 4450579)				$ 127.79
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 345.08
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	WP4448444		Grommet   (Replaces: 4448444)				$ 7.85
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	4452234		Back, Chassis		Appelez-nous	-
28	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
33	9760677		Deflector, Vent				$ 155.46
37	WP9759242		Thermostat (130c) (temp.) Spst   (Replaces: 9759242)			Immediately	$ 85.57
43	9759713		Base, Chassis				$ 100.19
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	4449845		Support, Bracket		Appelez-nous	-
55	4452152		Bracket, Mounting				$ 35.18
55	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
55	4450365		Insulation, Back				$ 70.95
55	4455447		Trim, Bottom (biscuit Model)		Appelez-nous	-
55	4455443		Trim, Bottom (black Model)		Appelez-nous	-
55	4455445		Trim, Bottom (white Model)		Appelez-nous	-
55	4455147		Trim, Bottom (s.steel Model)				$ 96.52
