SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel


03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional

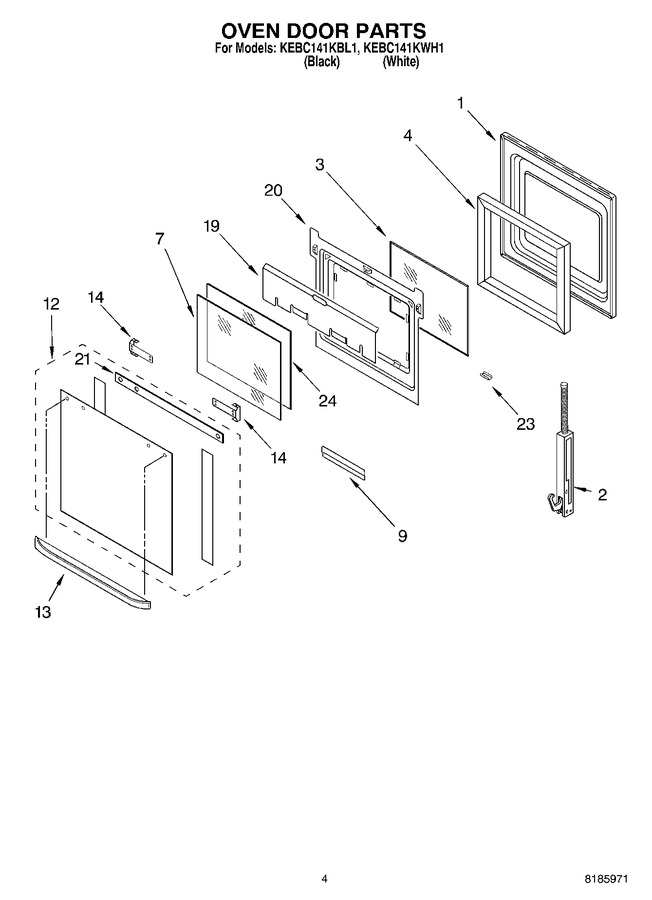

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Door Liner   (Replaces: 4455616)				$ 351.88
2	9760569		Hinge, Door (r.side)   (Replaces: 8300569)				$ 118.42
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 7.55
2	9760570		Hinge, Door (l.side)   (Replaces: 8300570)				$ 117.73
3	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 184.30
4	W11688413		Insulation, Door   (Replaces: 4451720)				$ 26.92
7	4449251		Glass, Inner		Appelez-nous	-
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	4451668		Retainer, Glass		Appelez-nous	-
12	8300836		Glass, Door Assy (black Model)				$ 112.97
12	8300837		Glass, Door Assy (white Model)				$ 109.32
13	4452499		Door Handle (white Model)		Appelez-nous	-
13	4452498		Door Handle (black Model)		Appelez-nous	-
14	4455804		Bracket, Handle (l.hand)				$ 25.95
14	4455803		Bracket, Handle (r.hand)				$ 30.70
14	WPW10132940		Bracket, Handle (screw)   (Replaces: 3196184)				$ 10.12
19	4450360		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4457130		Retainer, Glass   (Replaces: 8300776)		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
21	8300853		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
24	4455255		Glass, Inner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
