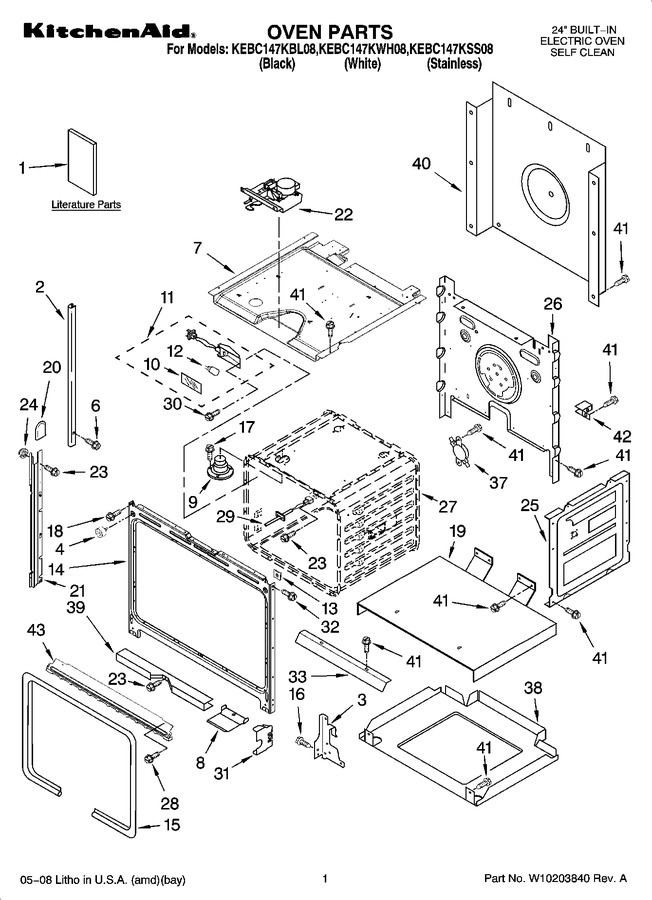

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8304062		Owners Manual		Appelez-nous	-
1	W10185218		Tech Sheet		Appelez-nous	-
1	8301928		Installation, Mwo Trim Kit		Appelez-nous	-
1	4449264		Easy Set Guide		Appelez-nous	-
1	3191638		Safer Cooking Tips (english)		Appelez-nous	-
1	9759133		Safer Cooking Tips (french)		Appelez-nous	-
1	W10045010		Installation Instructions		Appelez-nous	-
2	4455377		Trim, Side Right (black)				$ 232.13
2	4455376		Trim, Side Left (black)		Appelez-nous	-
2	WPW10144983		Trim, Side Right (stainless)   (Replaces: W10163502)				$ 164.76
2	4455428		Trim, Side Right (white)				$ 104.48
2	W10144984		Trim, Side Left (stainless)   (Replaces: W10163503)				$ 148.16
2	4455429		Trim, Side Left (white)		Appelez-nous	-
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	W10105790		Bumper, Door				$ 7.41
6	WP8281236		Screw   (Replaces: 8281236)				$ 8.16
7	4455863		Top Chassis				$ 117.60
8	W10145009		Deflector, Vent Box (white & Stainless)   (Replaces: 4452489)				$ 81.61
8	4455807		Deflector, Vent Box (black)		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10169756		Lens, Light				$ 42.19
11	WPW10307114		Assembly, Oven Light   (Replaces: W10009940)			Immediately	$ 116.01
12	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
13	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	9760754		Frame, Front				$ 132.66
15	WP4455380		Gasket, Door   (Replaces: 4455380)			Immediately	$ 174.79
16	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
17	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
18	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
19	4451476		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	814371		Rail, Side (right)   (Replaces: 4450579)				$ 127.79
21	814372		Rail, Side (left)   (Replaces: 4450580)				$ 126.74
22	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 345.08
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	WP4448444		Grommet   (Replaces: 4448444)				$ 7.85
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
26	4452232		Back, Chassis		Appelez-nous	-
28	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	4449748		Screw				$ 14.23
31	4452152		Bracket, Bottom Vent Trim				$ 35.18
32	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
33	9760675		Deflector, Vent				$ 76.62
37	WP9759242		Thermostat (130c)   (Replaces: 9759242)			Immediately	$ 85.57
38	4450525		Base, Chassis		Appelez-nous	-
39	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
40	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
41	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
42	4449845		Support, Bracket		Appelez-nous	-
43	8300828		Assembly, Vent Bottom Trim (black)		Appelez-nous	-
43	8300829		Assembly, Vent Bottom Trim (white)		Appelez-nous	-
43	8302366		Assembly, Vent Bottom Trim (stainless)		Appelez-nous	-
	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 189.64
	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 189.22
