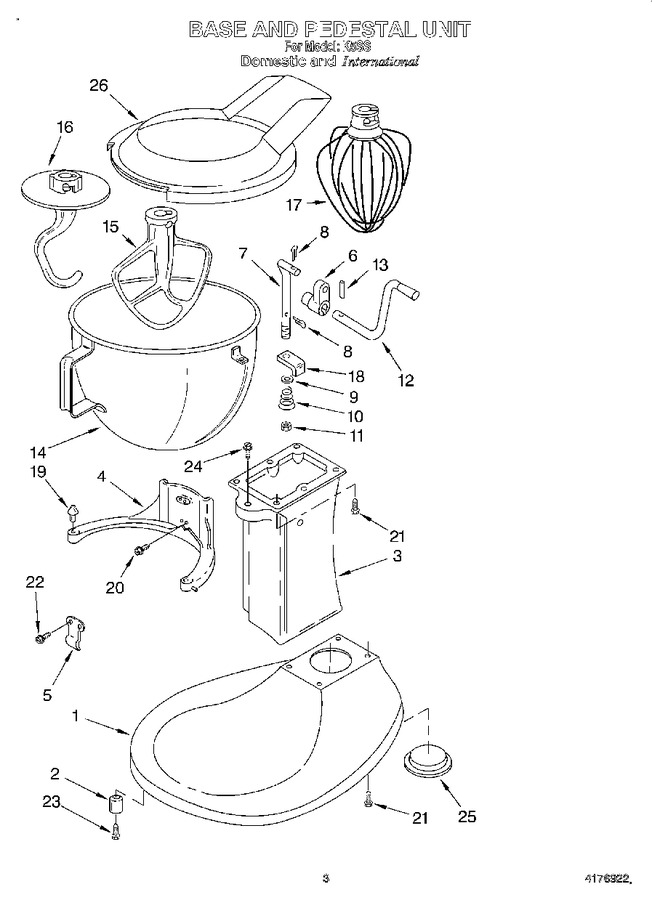

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9704803		Base & Foot Support-imperial Blk		Appelez-nous	-
1	4169511		Base & Foot Support-cobalt Blue		Appelez-nous	-
1	4176149		Column - Imperial Grey		Appelez-nous	-
1	3179292		Base & Foot Support-gloss Blk		Appelez-nous	-
1	4176142		Base & Foot Support-empire Green		Appelez-nous	-
1	W11233906		Base & Foot Support-white   (Replaces: 4162202)		Appelez-nous	-
1	9702409		Base & Foot Support-majestic Yellow   (Replaces: 9704505)		Appelez-nous	-
1	3179298		Base & Foot Support-metallic Chrome		Appelez-nous	-
1	3179299		Base & Foot Support-empire Red		Appelez-nous	-
2	8211628		Foot, Rubber (5)   (Replaces: 9703414)				$ 7.71
3	4176091		Column Assy-imperial Gray		Appelez-nous	-
3	4162411		Column Assy-white				$ 42.62
3	9701109		Column Assy-white (international)		Appelez-nous	-
3	9702392		Column Assy-metallic Chrome		Appelez-nous	-
3	9702394		Column Assy-majestic Yellow		Appelez-nous	-
3	9702393		Column Assy-empire Red		Appelez-nous	-
3	4176170		Column Assy-empire Green		Appelez-nous	-
3	240148-15		Column Assy-gloss Blk   (Replaces: 4176172)		Appelez-nous	-
3	9704802		Column Assy-imperial Blk		Appelez-nous	-
3	4176001		Column Assy-cobalt Blue		Appelez-nous	-
4	9704800		Bowl Support-imperial Blk		Appelez-nous	-
4	4176140		Bowl Support-empire Green		Appelez-nous	-
4	3179318		Bowl Support-empire Red		Appelez-nous	-
4	3179319		Bowl Support-majestic Yellow		Appelez-nous	-
4	3179317		Bowl Support-metallic Chrome		Appelez-nous	-
4	3179304		Bowl Support-imperial Gray   (Replaces: 4176092)				$ 43.34
4	3179303		Bowl Support-cobalt Blue   (Replaces: 4169505)		Appelez-nous	-
4	3179300		Bowl Support-white   (Replaces: 4162015)				$ 66.43
4	3179311		Bowl Support-black Gloss		Appelez-nous	-
5	WP3182857		Spring   (Replaces: 3182857)			Immediately	$ 5.29
6	WP241764		Arm, Bowl Lift   (Replaces: 4162874)			Immediately	$ 8.57
7	W10598834		Rod, Bowl Lift   (Replaces: 4159620)				$ 29.90
8	WP9704608		Cotter Pin   (Replaces: 9704608)				$ 4.37
9	W11708396		Washer   (Replaces: 4159514)				$ 4.60
10	4159622		Spring			Immediately	$ 4.70
11	8533907		Nut, 1/4-28   (Replaces: 4159092)				$ 24.83
12	W11812045		Handle, Bowl Lift   (Replaces: 4159615)				$ 10.85
13	WP9703442		Roll Pin   (Replaces: 9703442)				$ 4.28
14	WPW10714130		Bowl-mixer   (Replaces: 4176144)				$ 110.24
15	W10807813		Beater, Flat (k5ss Models)   (Replaces: 4162164)			Immediately	$ 32.13
15	W11356332		Beater, Flat (professional Mdl.)   (Replaces: 4176182)				$ 20.94
16	WPW10674621		Dough Hook (international)   (Replaces: 9701853)				$ 51.22
16	WPW10674621		Hook-dough   (Replaces: 3183232)				$ 51.22
16	WPW10674621		Hook-dough   (Replaces: 3183236)				$ 51.22
17	WPW10731415		Whip-wire   (Replaces: 9704309)			Immediately	$ 37.93
17	WPW10731415		Wire Whip (international)   (Replaces: 4176306)			Immediately	$ 37.93
18	W11794323		Bracket, Bowl Lift   (Replaces: 4162022)				$ 5.43
19	WP240185		Pin, Bowl Locating   (Replaces: 4162028)				$ 4.50
20	W10861883		Screw, 10-24 X 1/2   (Replaces: 3400018)			Immediately	$ 4.94
21	WP4162403		Screw, Special No.5/16-18 X 3/4 Pan Head (4)   (Replaces: 4162403)				$ 5.38
22	WP4159193		Screw   (Replaces: 3400024)				$ 5.07
23	4159349		Screw, No.8 X 3/8 Phil. Rd. Hd. Type B		Appelez-nous	-
24	3182904		Screw, Dbl. Ended		Appelez-nous	-
25	4176184		Plug		Appelez-nous	-
26	W11312468		Pouring Shield   (Replaces: 4176453)				$ 43.26
	LIT9701130		Use & Care Guide (international)		Appelez-nous	-
	LIT9706634		Literature Parts (use And Care Guide)		Appelez-nous	-
	LIT4176922		Repair Parts List		Appelez-nous	-
NI	W11312468		Pouring Shield   (Replaces: 9706633)				$ 43.26
