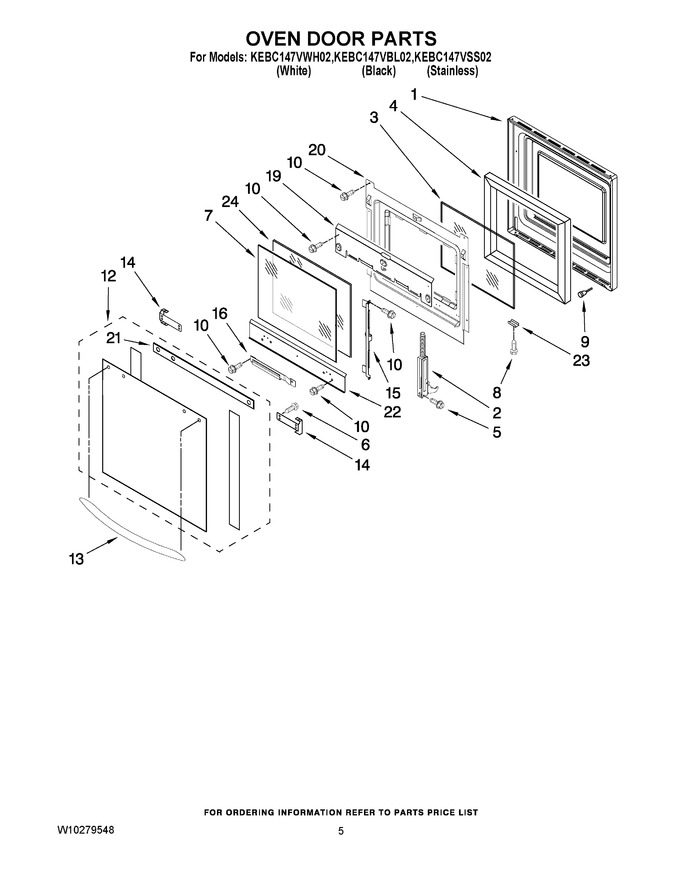

04 - Oven Door Parts


05 - Top Venting Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Door Liner   (Replaces: 8303698)				$ 351.88
2	WP9760572		(for Stainless Model Only) (left)   (Replaces: 9760572)				$ 111.96
2	9760570		Hinge, Door (left)				$ 117.73
2	9760569		Hinge, Door (right)				$ 118.42
2	WP9760571		(for Stainless Model Only) (right)   (Replaces: 9760571)			Immediately	$ 114.51
3	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 184.30
4	W11688413		Insulation, Door   (Replaces: 4451720)				$ 26.92
5	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
6	WPW10132940		Screw   (Replaces: 3196184)				$ 10.12
7	WP9759223		Glass, Inner   (Replaces: 9759223)				$ 198.29
8	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
9	4448520		Bumper, Door				$ 22.25
10	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
12	W10151060		Assembly, Door Glass (stainless)		Appelez-nous	-
12	8300836		Assembly, Door Glass (black)				$ 112.97
12	8300837		Assembly, Door Glass (white)				$ 109.32
13	W10199968		Door Handle (white)		Appelez-nous	-
13	W10199965		Door Handle (black)		Appelez-nous	-
13	W10199967		Door Handle (stainless)		Appelez-nous	-
14	4455804		Bracket, Handle (left)				$ 25.95
14	4455803		Bracket, Handle (right)				$ 30.70
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
16	9759230		Bracket (3rdglass)				$ 36.30
19	4457101		Shield, Heat		Appelez-nous	-
20	4457130		Retainer, Glass		Appelez-nous	-
21	8300853		Seal, Door Top		Appelez-nous	-
22	4457112		Shield, Heat		Appelez-nous	-
23	W10158497		Retainer, Clip (stainless)				$ 5.65
23	4450863		Retainer, Clip (black)		Appelez-nous	-
23	4450864		Retainer, Clip (white)		Appelez-nous	-
24	WP9759226		Glass, Inner   (Replaces: 9759226)				$ 186.64
