SELECT A DIAGRAM
01 - Oven Parts

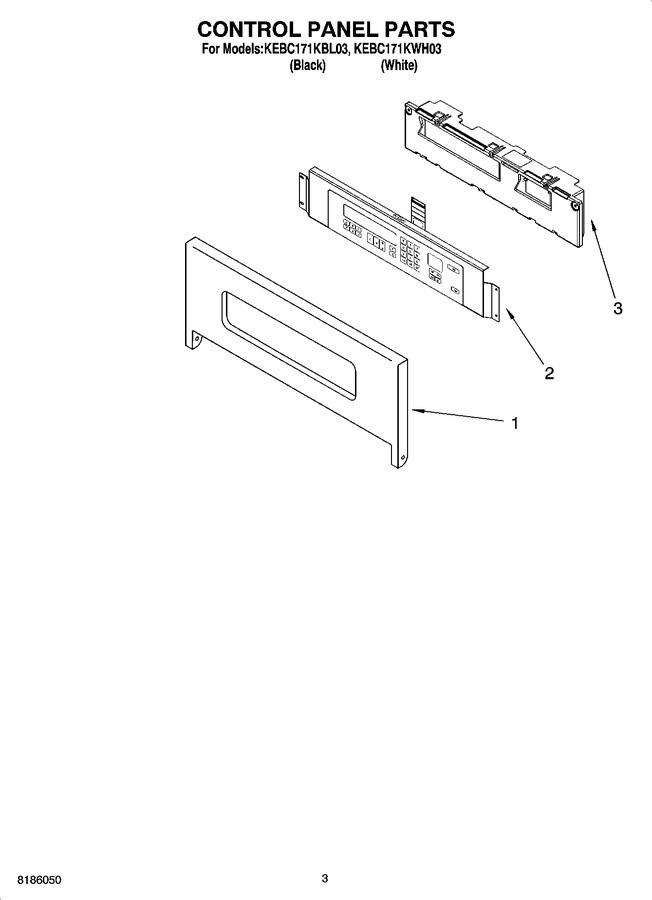

02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4452602 | Control Panel Assy. (black Model) |
|
- | |||||
| 1 | 4452603 | Control Panel Assy. (white Model) |
|
- | |||||
| 1 | WP3400832 | Control Panel Assy. (screw) (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 2 | 8301945 | Assy, Membrane (black) |
|
- | |||||
| 2 | 8301946 | Assy, Membrane (white) |
|
- | |||||
| 3 | 8301915 | Assy, Control |
|
- | |||||
| 3 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 |
