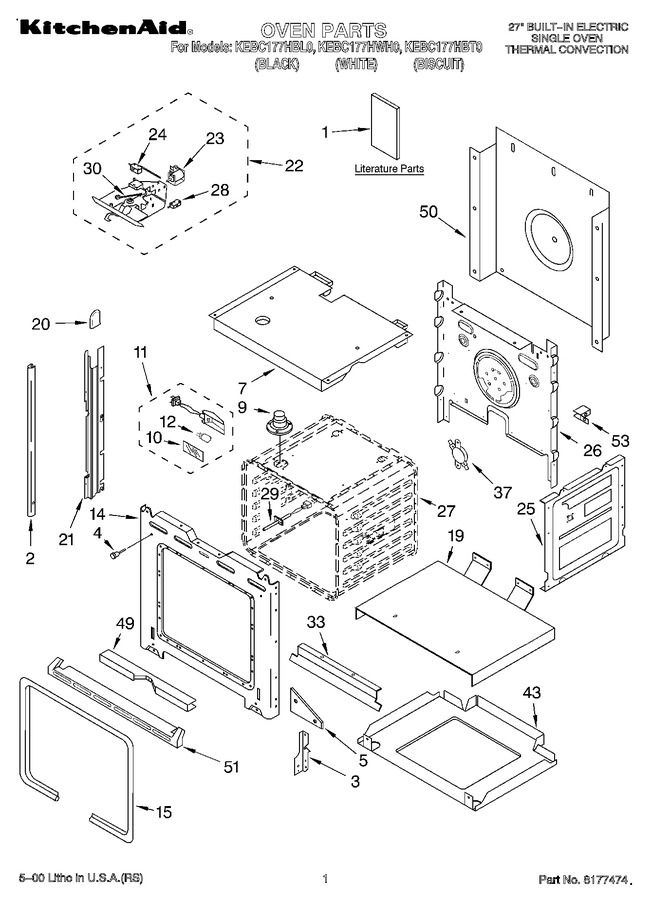

SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel


03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4450410		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT3192225		Literature Parts (installation/ Undercounter)		Appelez-nous	-
1	LIT4450841		Literature Parts (installation/ Mwo Trim Kit)		Appelez-nous	-
1	LIT4451952		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT4449066		Literature Parts (cookbook T/c)		Appelez-nous	-
1	LIT4451876		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT4449264		Literature Parts (guide, Easy Set)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	4455377		Trim, Side Right (black)				$ 232.13
2	4455378		Trim, Side (left Hand) (biscuit)		Appelez-nous	-
2	WP8281236		Trim, Side (screw Black)   (Replaces: 4449747)				$ 8.16
2	4449041		Trim, Side (screw White)				$ 5.27
2	4455376		Trim, Side Left (black)		Appelez-nous	-
2	4455429		Trim, Side (lh White)		Appelez-nous	-
2	4455424		Trim, Side (right Hand) (biscuit)		Appelez-nous	-
2	4455428		Trim, Side (rh White)				$ 104.48
3	4454665		Reciever, Hinge (right Hand)		Appelez-nous	-
3	4454664		Reciever, Hinge (left Hand)		Appelez-nous	-
4	4448520		Bumper, Door				$ 22.25
5	WP4455509		Bracket, Support   (Replaces: 4455509)				$ 94.01
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4455285		Top, Chassis		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 14.23
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4451739		Frame, Front		Appelez-nous	-
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4451477		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	814371		Rail, Side (right)   (Replaces: 4450579)				$ 127.79
21	814372		Rail, Side (left)   (Replaces: 4450580)				$ 126.74
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
22	4451896		Latch Assembly				$ 163.41
23	4452224		Solenoid		Appelez-nous	-
24	4452312		Microswitch N.c.				$ 90.43
24	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
26	4452233		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
28	4451426		Microswitch		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	4451665		Sensor				$ 107.99
30	4451537		Spring, Latch		Appelez-nous	-
33	W10145009		Deflector, Vent (white & Biscuit Model)   (Replaces: 4452489)				$ 81.61
33	4452495		Deflector, Vent (black Model)		Appelez-nous	-
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP9759242		Thermostat (tod)   (Replaces: 4452223)			Immediately	$ 85.57
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4455529		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4452152		Trim, Bottom (bracket, Mounting Trim)				$ 35.18
51	4455444		Trim, Bottom (white Model)		Appelez-nous	-
51	4455446		Trim, Bottom (biscuit)		Appelez-nous	-
51	4159465		Trim, Bottom (screw)		Appelez-nous	-
51	4455442		Trim, Bottom (black)		Appelez-nous	-
53	4450364		Insulation, Back		Appelez-nous	-
53	4449315		Insulation, Wrap				$ 64.81
53	4449845		Bracket-support		Appelez-nous	-
