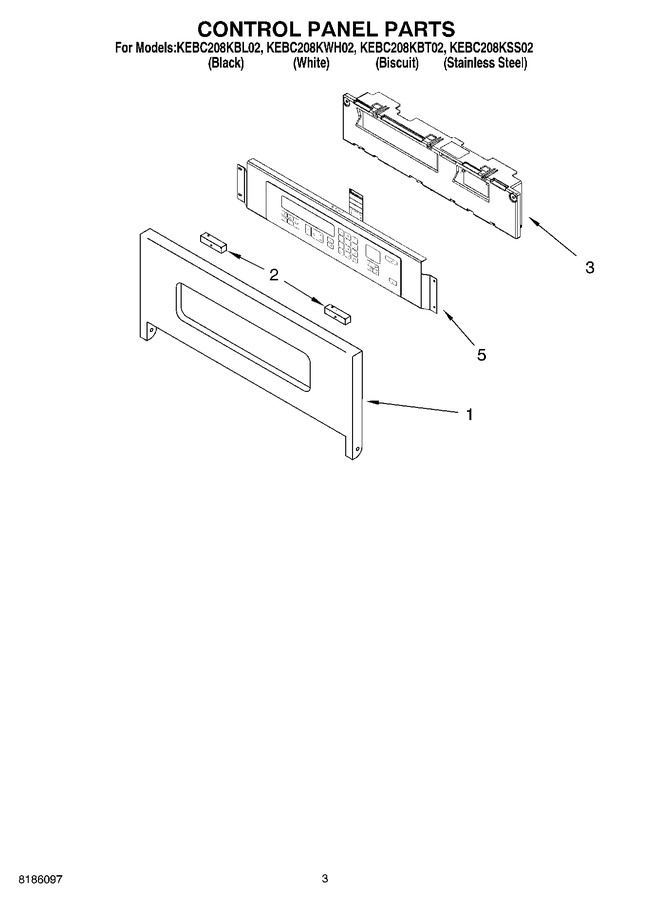

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4452604 | Panel, Control (black) |
|
- | |||||
| 1 | 4452605 | Panel, Control (white) |
|
- | |||||
| 1 | 4452974 | Panel, Control (biscuit) |
|
- | |||||
| 1 | 4451791 | Panel, Control Stainless Steel |
|
- | |||||
| 2 | 4452260 | Spacer, Foam |
|
- | |||||
| 3 | 8301890 | Assy, Control |
|
- | |||||
| 3 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 3 | 8301848 | Latch, Sister Board |
|
$ 184.23 | |||||
| 3 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 5 | 8301978 | Switch, Membrane (black) |
|
- | |||||
| 5 | 8301979 | Switch, Membrane (white) |
|
- | |||||
| 5 | 8301980 | Switch, Membrane (biscuit) |
|
- | |||||
| 5 | 8301981 | Switch, Membrane (stainless Steel) |
|
- | |||||
| 5 | WP3400832 | Switch, Membrane (screw) (Replaces: 3400832) |
|
Immediately | $ 8.18 |
