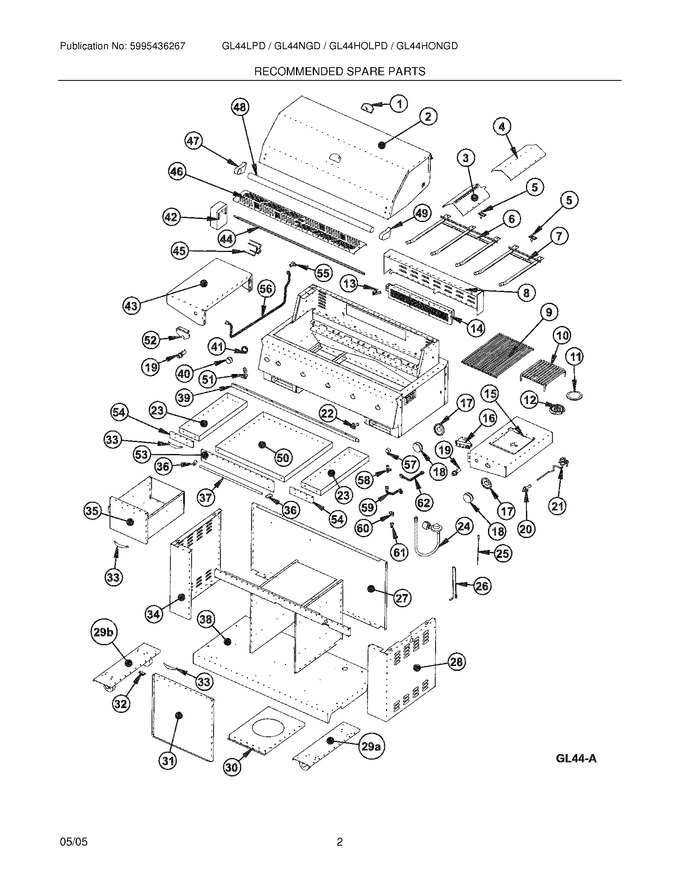

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304444521 | Hood,grill |
|
- | |||||
| 3 | 5304444398 | Flavor Grid,igniter Cover ,bottom ,angle |
|
$ 370.83 | |||||
| 4 | 5304444399 | Flavor Grid,burner Cover ,top ,angle |
|
$ 499.38 | |||||
| 8 | 5304444523 | Cover,infrared Burner |
|
- | |||||
| 9 | 5304444524 | Grate,main Burner |
|
$ 287.13 | |||||
| 10 | 5304444400 | Grate,side Burner |
|
$ 234.27 | |||||
| 11 | 5304444402 | Cap,side Burner |
|
$ 50.33 | |||||
| 12 | 5304444403 | Burner Head,side Burner |
|
- | |||||
| 15 | 5304445093 | Shelf,side Burner ,cart Model |
|
- | |||||
| 17 | 5304444406 | Bezel,knob |
|
$ 51.03 | |||||
| 18 | 5304444529 | Knob,burner |
|
$ 84.00 | |||||
| 19 | 5304444404 | Housing,igniter Battery |
|
- | |||||
| 23 | 5304444532 | Tray,drip Pan |
|
- | |||||
| 27 | 5304444535 | Panel,cart ,back |
|
- | |||||
| 28 | 5304444536 | Panel,cart ,right Side |
|
- | |||||
| 30 | 5304444538 | Tray,gas Tank |
|
- | |||||
| 31 | 5304444539 | Door,cart |
|
- | |||||
| 32 | 5304444391 | Magnet,door |
|
$ 52.55 | |||||
| 33 | 5304444540 | Handle,drawer/drip Pan |
|
- | |||||
| 34 | 5304444541 | Panel,cart ,left Side |
|
- | |||||
| 35 | 5304444542 | Drawer,cart ,storage |
|
- | |||||
| 36 | 5304444543 | Handle End,warming Tray |
|
- | |||||
| 37 | 5304444544 | Handle,warming Tray |
|
- | |||||
| 38 | 5304444545 | Base,cart |
|
- | |||||
| 40 | 5304444547 | Knob,infrared Burner |
|
- | |||||
| 41 | 5304444429 | Bezel,infrared Knob |
|
$ 39.90 | |||||
| 43 | 5304444549 | Shelf,left Side |
|
- | |||||
| 46 | 5304444552 | Shelf,warming Rack |
|
- | |||||
| 47 | 5304444388 | Handle End,hood ,left |
|
$ 48.51 | |||||
| 48 | 5304444553 | Handle,hood ,40 Inch |
|
- | |||||
| 49 | 5304444390 | Handle End,hood ,right |
|
- | |||||
| 50 | 5304444554 | Drawer,warming |
|
- | |||||
| 53 | 5304444556 | Panel,warming Drawer ,front |
|
$ 199.04 | |||||
| 54 | 5304444557 | Panel,drip Pan ,front |
|
- | |||||
| 29A | 5304444537 | Channel,wheel ,swivel |
|
- | |||||
| 29B | 5304445095 | Channel,wheel ,fixed |
|
- | |||||
| F1 | 5304444392 | Guage,temperature |
|
$ 151.38 | |||||
| F13 | 5304444393 | Electrode,infrared Burner ,back |
|
$ 130.57 | |||||
| F14 | 5304445092 | Burner,infrared ,back |
|
- | |||||
| F16 | 5304444674 | Igniter,4-pole ,no Ground ,with Bracket |
|
- | |||||
| F20 | 5304445078 | Valve,side Burner ,lp |
|
- | |||||
| F21 | 5304445087 | Orifice,lp ,side Burner ,with Holder |
|
- | |||||
| F22 | 5304445069 | Valve,burner ,main/side ,lp |
|
- | |||||
| F24 | 5304444675 | Regulator,lp |
|
$ 311.43 | |||||
| F25 | 5304444431 | Wire,igniter ,positive |
|
$ 58.70 | |||||
| F26 | 5304444432 | Wire,igniter ,negative |
|
$ 62.37 | |||||
| F39 | 5304444546 | Manifold |
|
- | |||||
| F42 | 5304444548 | Motor,rotisserie |
|
- | |||||
| F44 | 5304444550 | Spit,rotisserie |
|
- | |||||
| F45 | 5304444551 | Fork,rotisserie |
|
$ 111.63 | |||||
| F5 | 5304444439 | Electrode,main Burner |
|
$ 148.05 | |||||
| F51 | 5304445074 | Valve,infrared Burner ,lp |
|
- | |||||
| F52 | 5304444642 | Igniter,2-pole ,no Ground ,with Bracket |
|
- | |||||
| F55 | 5304447618 | Elbow,lp ,ir Burner Rear ,with Orifice |
|
$ 57.62 | |||||
| F56 | 5304447646 | Hose,gas ,infrared Burner ,rear |
|
- | |||||
| F57 | 5304447638 | Elbow,gas Fitting ,manifold-to-t |
|
- | |||||
| F58 | 5304447639 | Connector,t |
|
$ 41.22 | |||||
| F59 | 5304446174 | Hose,gas ,10`` ,main Supply |
|
$ 124.54 | |||||
| F6 | 5304444460 | Burner,main ,3 Cell |
|
$ 517.56 | |||||
| F60 | 5304447623 | Elbow,main Connection |
|
- | |||||
| F61 | 5304447624 | Fitting,main Connection |
|
- | |||||
| F62 | 5304447640 | Hose,gas ,16`` ,to Side Burner |
|
- | |||||
| F7 | 5304444522 | Burner,main ,2 Cell |
|
$ 500.69 | |||||
| NI | 5304445048 | Screw,bezel/valve |
|
- | |||||
| NI | 5304444558 | Screw,handle End ,door/drawer/pan |
|
$ 2.54 | |||||
| NI | 5304444446 | Screw,hood Handle End |
|
- | |||||
| NI | 5304444447 | Screw,self-tapping |
|
$ 11.03 | |||||
| NI | 5304444559 | Wire,igniter ,infrared Burner |
|
- | |||||
| NI | 5304444560 | Wire,igniter ,main Burner ,center |
|
- | |||||
| NI | 5304444561 | Wire,igniter ,main Burner ,left & Right |
|
- | |||||
| NI | 5304444563 | Wire,igniter ,side Burner |
|
- | |||||
| NI | 5304444441 | Bolt,valve/manifold |
|
- | |||||
| NI | 5304444442 | Bolt,wheel & Cart |
|
- | |||||
| NI | 5304444443 | Nut,door ,bottom Pivot |
|
- | |||||
| NI | 5304444444 | Screw,door ,bottom Pivot |
|
- |
