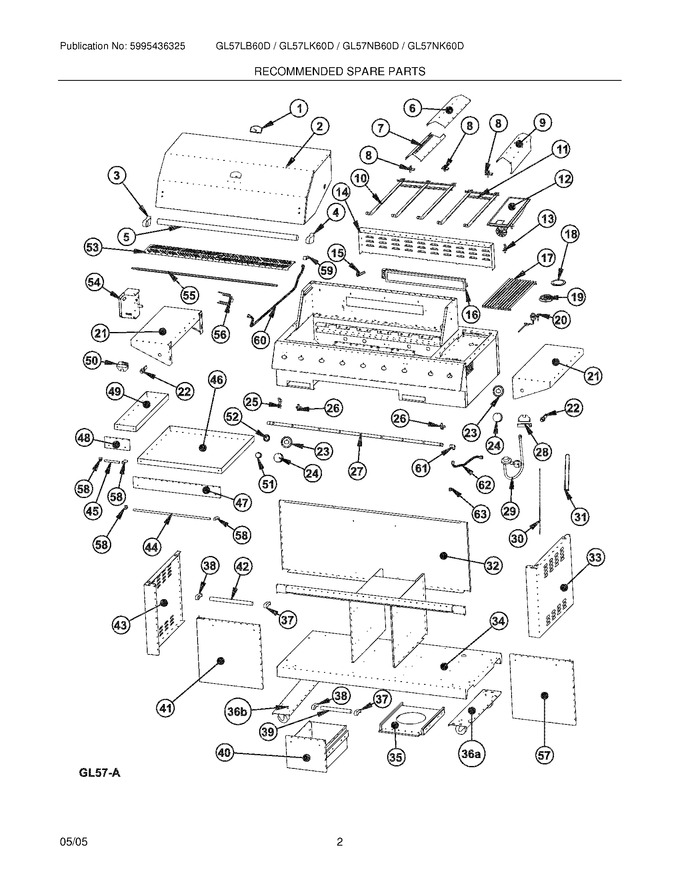

01 - Cover


03 - Recommended Spare Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304444664		Hood,grill		Appelez-nous	-
3	5304444388		Handle End,hood ,left				$ 48.51
4	5304444390		Handle End,hood ,right		Appelez-nous	-
5	5304444665		Handle,hood ,42 Inch		Appelez-nous	-
6	5304444666		Flavor Grid,burner Cover ,top ,angle				$ 275.87
7	5304444667		Flavor Grid,igniter Cover ,bottom ,angle		Appelez-nous	-
9	5304444668		Flavor Grid,burner Cover ,top-right Side,angle		Appelez-nous	-
14	5304445147		Cover,infrared Burner		Appelez-nous	-
17	5304444672		Grate,burner ,main/side				$ 333.02
18	5304444402		Cap,side Burner				$ 50.33
19	5304444403		Burner Head,side Burner		Appelez-nous	-
22	5304444404		Housing,igniter Battery		Appelez-nous	-
23	5304444406		Bezel,knob				$ 51.03
24	5304444529		Knob,burner				$ 84.00
44	5304444684		Handle,warming Tray		Appelez-nous	-
45	5304444645		Handle,drip Pan		Appelez-nous	-
46	5304444685		Drawer,warming		Appelez-nous	-
47	5304444686		Panel,warming Drawer ,front		Appelez-nous	-
48	5304444687		Panel,drip Pan ,front		Appelez-nous	-
49	5304444643		Tray,drip Pan		Appelez-nous	-
51	5304444547		Knob,infrared Burner		Appelez-nous	-
52	5304444429		Bezel,infrared Knob				$ 39.90
53	5304444688		Shelf,warming Rack		Appelez-nous	-
55	5304444690		Spit,rotisserie		Appelez-nous	-
56	5304444551		Fork,rotisserie				$ 111.63
58	5304444543		Handle End,warming Tray		Appelez-nous	-
59	5304447625		Elbow,lp Fitting ,infrared Burner ,rear		Appelez-nous	-
61	5304447621		Elbow,gas Fitting ,manifold/hose		Appelez-nous	-
F1	5304444392		Guage,temperature				$ 151.38
F10	5304444669		Burner,main ,3 Cell				$ 432.52
F11	5304444670		Burner,main ,2 Cell				$ 456.01
F12	5304444635		Burner,infrared ,bottom				$ 470.30
F13	5304444636		Electrode,infrared Burner ,bottom				$ 126.26
F15	5304444393		Electrode,infrared Burner ,back				$ 130.57
F16	5304444638		Burner,infrared ,back		Appelez-nous	-
F20	5304445087		Orifice,lp ,side Burner ,with Holder		Appelez-nous	-
F25	5304445074		Valve,infrared Burner ,lp		Appelez-nous	-
F26	5304445069		Valve,burner ,main/side ,lp		Appelez-nous	-
F27	5304444673		Manifold		Appelez-nous	-
F28	5304444674		Igniter,4-pole ,no Ground ,with Bracket		Appelez-nous	-
F29	5304444675		Regulator,lp				$ 311.43
F30	5304444431		Wire,igniter ,positive				$ 58.70
F31	5304444432		Wire,igniter ,negative				$ 62.37
F54	5304444689		Motor,rotisserie		Appelez-nous	-
F60	5304447646		Hose,gas ,infrared Burner ,rear		Appelez-nous	-
F8	5304444439		Electrode,main Burner				$ 148.05
NI	5304444441		Bolt,valve/manifold		Appelez-nous	-
NI	5304445048		Screw,bezel/valve		Appelez-nous	-
NI	5304444446		Screw,hood Handle End		Appelez-nous	-
NI	5304444447		Screw,self-tapping				$ 11.03
NI	5304444692		Wire,igniter ,infrared Burner ,back		Appelez-nous	-
NI	5304444694		Wire,igniter ,infrared Burner ,bottom				$ 125.69
NI	5304444695		Wire,igniter ,side Burner ,front				$ 71.82
NI	5304444696		Wire,igniter ,side Burner ,rear		Appelez-nous	-
NI	5304444697		Wire,igniter ,main Burner ,left		Appelez-nous	-
NI	5304444699		Wire,igniter ,main Burner ,right		Appelez-nous	-
