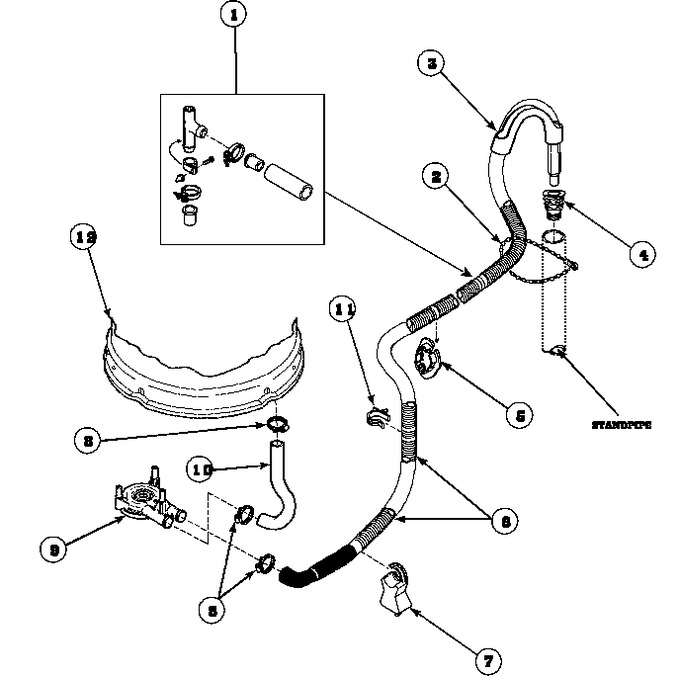

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	76660		Siphon Kit   (Replaces: 562P3)			Immediately	$ 133.25
2	33489		Strap, Standpipe Bead		Appelez-nous	-
3	33615		Sleeve, Drain Hose				$ 8.35
4	40008101		Stand Pipe Adapter   (Replaces: 36878)				$ 94.10
5	32219		Relief, Strain				$ 7.72
6	WP40053901		Hose, Drain   (Replaces: 38062)			Immediately	$ 68.82
7	38732		Hose Support				$ 2.42
8	WP285655		Clamp, Hose   (Replaces: 36802)			Immediately	$ 8.39
9	36863P		Pump Assembly		Appelez-nous	-
10	38351		Tub-to-pump Hose				$ 23.75
11	36014		Clip, Retainer-hose				$ 7.72
12	37813P		Tub, Outer-tall				$ 552.94

    View Diagram in Separate Window       Print Part List
