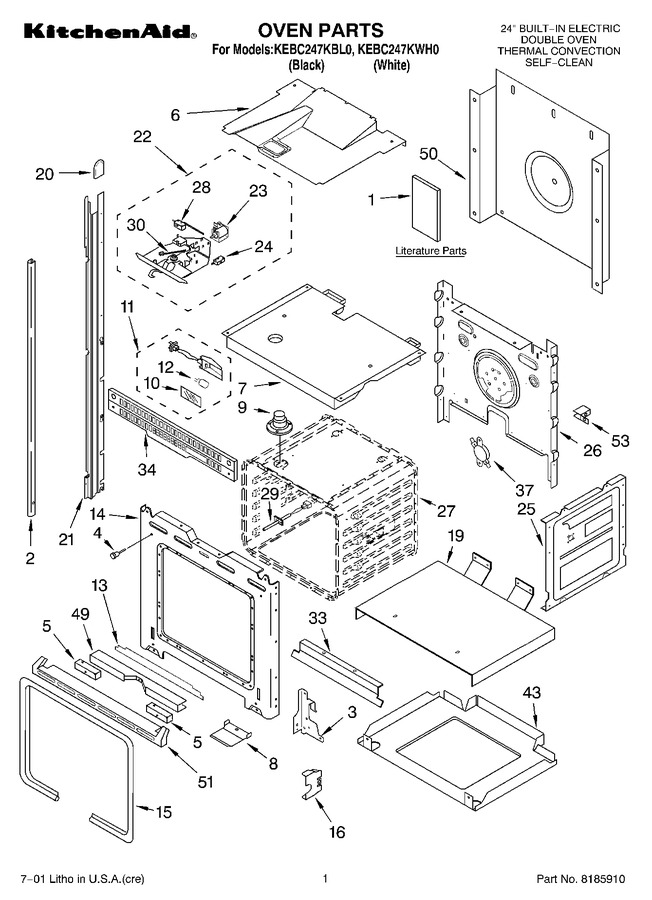

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8300886		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8300656		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4449066		Literature Parts (cookbook (t/c Oven))		Appelez-nous	-
1	LIT4451879		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT4449264		Literature Parts (easy Set Guide)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	WP694091		Trim, Side (screw)   (Replaces: 694091)				$ 7.55
2	4455426		Trim, Side (rh Black)		Appelez-nous	-
2	4455375		Trim, Side Right (white)				$ 79.35
2	4455427		Trim, Side (lh Black)				$ 93.75
2	4455374		Trim, Side Left (white)				$ 77.53
2	WP8281236		Trim, Side (screw)   (Replaces: 8281236)				$ 8.16
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
4	4448520		Bumper, Door				$ 22.25
5	4452490		Spacer, Foam				$ 34.83
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
6	8302347		Divider, Vent   (Replaces: 4452199)		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4455863		Top Chassis				$ 117.60
8	W10145009		Deflector, Vent Box (stainless Steel)   (Replaces: 4452489)				$ 81.61
8	4455807		Deflector, Vent Box (black)		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 14.23
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
13	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
13	8300825		Insulation, Bottom Vent		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	9760754		Frame, Front   (Replaces: 4455610)				$ 132.66
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	WP4455380		Gasket, Door   (Replaces: 4455380)			Immediately	$ 174.79
16	4452152		Bracket, Mounting				$ 35.18
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4451476		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	814373		Rail, Side (right Side)   (Replaces: 4450581)				$ 237.85
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	814374		Rail, Side (left Side)   (Replaces: 4450582)				$ 238.23
22	4451896		Latch Assy				$ 163.41
23	4452224		Solenoid		Appelez-nous	-
24	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	4452312		Microswitch N.c.				$ 90.43
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452232		Back, Chassis		Appelez-nous	-
27	N/A		Liner, Oven (not Serviceable)		Appelez-nous	-
28	4451426		Microswitch		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
30	4451537		Spring, Latch		Appelez-nous	-
33	8300880		Deflector, Vent		Appelez-nous	-
34	W10358914		Vent, Center   (Replaces: 4452265)		Appelez-nous	-
37	WP9759242		Thermostat (tod)   (Replaces: 4452223)			Immediately	$ 85.57
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4450525		Base, Chassis		Appelez-nous	-
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	8300828		Trim, Bottom (black Model)		Appelez-nous	-
51	WP3400832		Trim, Bottom (screw)   (Replaces: 3400832)			Immediately	$ 8.18
51	8300829		Trim, Bottom (white Model)		Appelez-nous	-
53	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 189.22
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	4449845		Support, Bracket		Appelez-nous	-
53	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 189.64
