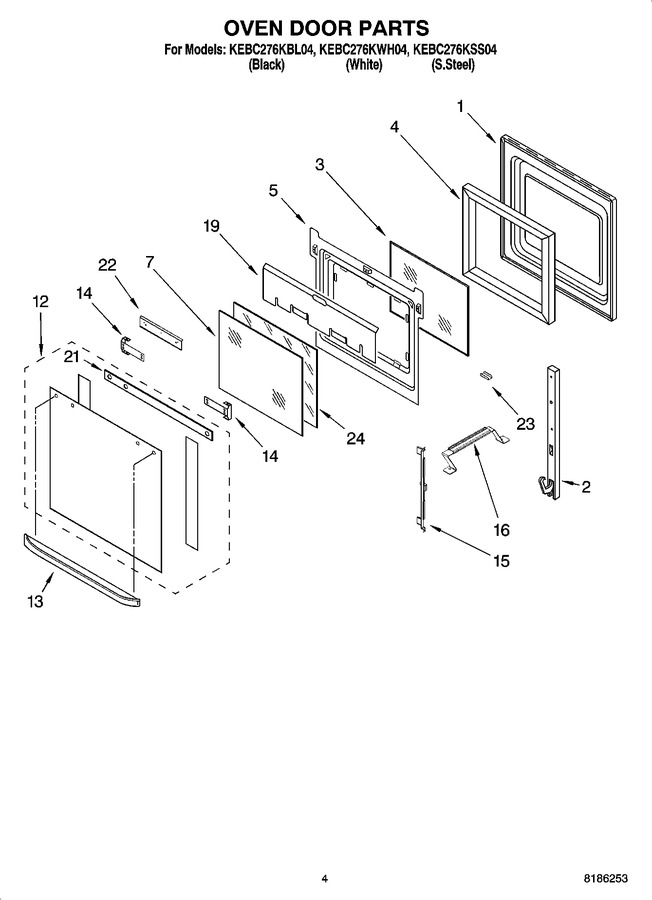

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4457126		Door Liner		Appelez-nous	-
2	WP9760572		Hinge, Door (l.side (white))   (Replaces: 8300572)				$ 111.96
2	WP9760571		Hinge, Door (r.side (white))   (Replaces: 8300571)			Immediately	$ 114.51
2	WP9760576		Hinge, Door (lh (clear))   (Replaces: 8300576)			Immediately	$ 56.46
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 7.55
2	WP9760575		Hinge, Door (rh (clear))   (Replaces: 8300575)			Immediately	$ 64.57
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
4	4451721		Insulation, Door				$ 37.62
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
5	4457131		Retainer, Glass				$ 31.95
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	9759224		Glass, Inner				$ 81.28
12	4455393		Door Glass, Assy (black Model)		Appelez-nous	-
12	4452315		Door Glass, Assy (s.steel Model)				$ 274.20
12	4455392		Door Glass, Assy (white Model)		Appelez-nous	-
13	4452500		Door Handle (black Model)		Appelez-nous	-
13	4452501		Door Handle (white Model)		Appelez-nous	-
13	4455850		Door Handle (s.steel Model)		Appelez-nous	-
14	4455804		Bracket, Handle (l.side)				$ 25.95
14	WPW10132940		Bracket, Handle (screw)   (Replaces: 3196184)				$ 10.12
14	4455803		Bracket, Handle (r.side)				$ 30.70
15	WP9759229		Bracket (2nd Glass)   (Replaces: 9759229)				$ 187.50
16	9759230		Bracket (3rdglass)				$ 36.30
19	4450361		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
21	4452325		Seal, Door				$ 32.70
22	4457113		Shield, Heat (bottom)				$ 33.29
23	4451668		Retainer, Clip (s.steel Model)		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
24	9759227		Glass. Inner				$ 81.36

    View Diagram in Separate Window       Print Part List
