SELECT A DIAGRAM
01 - Bowl Assembly Parts
02 - Motor And Housing Parts Top View
03 - Motor And Housing Parts Bottom View

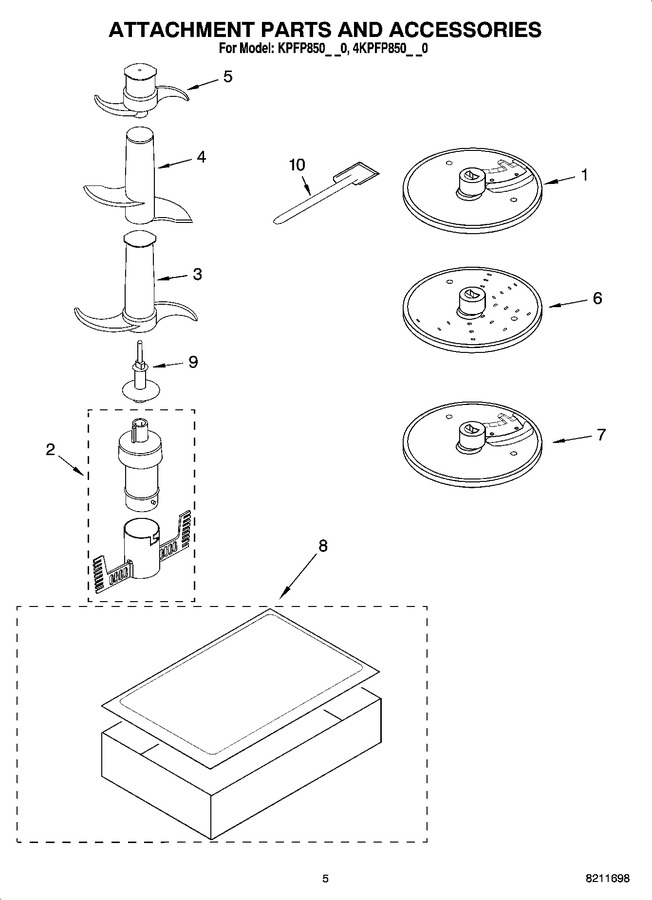

04 - Attachment Parts And Accessories
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8211549 | Slicing Disc 2mm |
|
- | |||||
| 2 | 8211553 | Egg Whisk Assembly |
|
- | |||||
| 3 | 8211555 | Multipurpose Blade |
|
- | |||||
| 4 | 8211556 | Dough Blade Assembly |
|
- | |||||
| 5 | 8211557 | Mini Blade |
|
- | |||||
| 6 | 8211558 | Shredding Disc 4mm |
|
- | |||||
| 7 | 8211559 | Slicing Disc 4mm |
|
- | |||||
| 8 | 8211554 | Storage Box, Accessory |
|
- | |||||
| 9 | 8211759 | Stem, Disc |
|
- | |||||
| 10 | 8211760 | Spatula |
|
$ 24.64 |
