SELECT A DIAGRAM

01 - Cabinet Parts

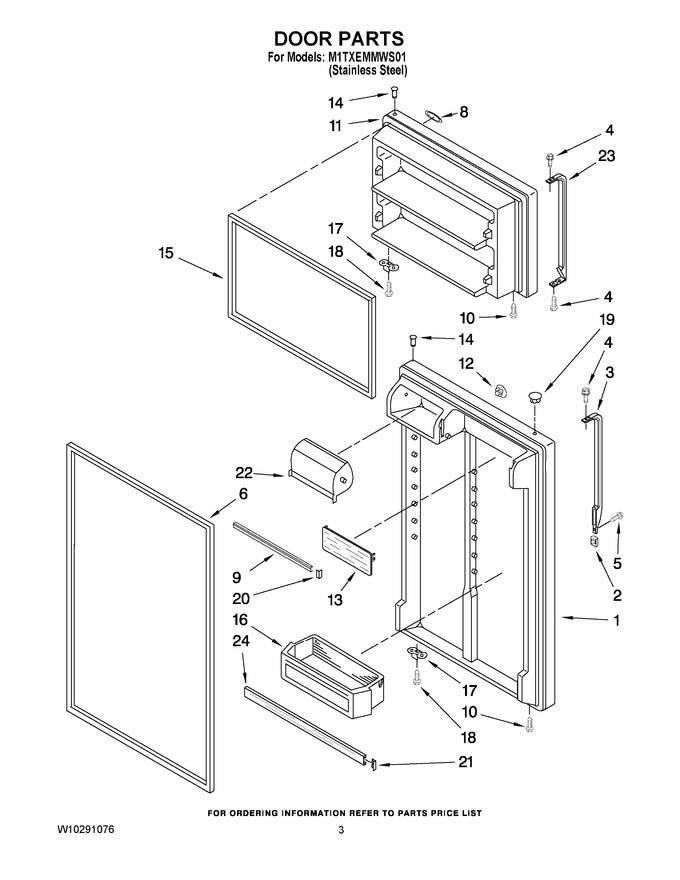

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10271883		Refrigerator Door (includes Illus. 6 & 14) (stainless Steel)		Appelez-nous	-
2	2193143B		Handle, Trim (black)		Appelez-nous	-
3	2254533B		Handle, Refrigerator (black)				$ 68.18
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
5	WP8281146		Screw   (Replaces: 8281146)				$ 8.18
6	2177311		Door Gasket, Magnetic (black)   (Replaces: 2202882)				$ 330.95
8	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
9	WP2201061		Trim, Door Shelf   (Replaces: 2195378)				$ 124.32
10	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
11	W10271885		Freezer Door (includes Illus. 14 & 15) (stainless Steel)		Appelez-nous	-
12	WP2189009		Hole Plug, Handle (black)   (Replaces: 2189009)				$ 7.61
12	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.77
13	WP2188236		Shelf, Flip-up   (Replaces: 2188236)				$ 64.38
14	WP2314293		Thimble   (Replaces: 2314293)				$ 7.55
15	2177310		Door Gasket, Magnetic (black)   (Replaces: 2214969)				$ 335.31
16	WP2204812		Bin, Door Shelf   (Replaces: 2204812)				$ 80.45
17	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
18	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
19	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 24.21
20	WP2156007		Plug-trim   (Replaces: 2156007)			Immediately	$ 8.03
21	WP2156006		Plug, Trim   (Replaces: 2156006)			Immediately	$ 12.79
22	WP2218118		Compartment Door   (Replaces: 2218118)				$ 81.92
23	2314545B		Handle, Freezer (black)		Appelez-nous	-
24	WPW10421486		Trim, Door   (Replaces: 2195948)				$ 114.74

    View Diagram in Separate Window       Print Part List
