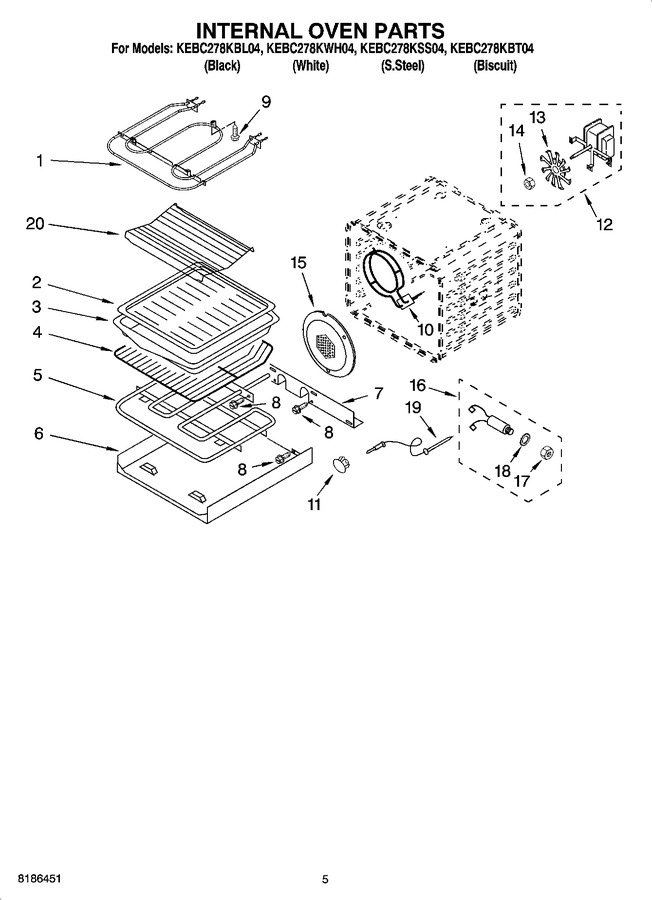

04 - Internal Oven Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10207400 | Element, Broil (Replaces: 4456104) |
|
Immediately | $ 288.53 | ||||
| 2 | WP3195996 | Grill, Broiler (Replaces: 4457277) |
|
$ 98.65 | |||||
| 3 | WP3196076 | Pan, Broiler (Replaces: 4457276) |
|
$ 330.36 | |||||
| 4 | 4448715 | Rack, Oven |
|
$ 80.66 | |||||
| 5 | 4451175 | Element, Bake (Replaces: 4452155) |
|
Immediately | $ 140.93 | ||||
| 6 | 4455036 | Tray, Bake |
|
$ 76.60 | |||||
| 7 | 4450039 | Cover, Bake Tray |
|
$ 92.11 | |||||
| 8 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 9 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 10 | WP9760769 | Element, Convection (Replaces: 4452157) |
|
Immediately | $ 337.88 | ||||
| 11 | 4448982 | Button, Plug |
|
- | |||||
| 12 | 4451583 | Motor, Cnvctn |
|
$ 140.53 | |||||
| 13 | 4452226 | Blade, Fan |
|
$ 30.89 | |||||
| 14 | 4452227 | Nut |
|
$ 33.98 | |||||
| 15 | WPW10160821 | Cover, Fan (Replaces: 4448418) |
|
$ 285.59 | |||||
| 16 | 8186589 | Jack, Meat Probe (Replaces: 4451355) |
|
Immediately | $ 108.02 | ||||
| 17 | WP9755546 | Hex Nut (Replaces: 4448881) |
|
$ 7.30 | |||||
| 18 | WP9755547 | Lock Washer (Replaces: 4448882) |
|
$ 6.41 | |||||
| 19 | WP9755542 | Probe, Meat (Replaces: 4448948) |
|
Immediately | $ 92.12 | ||||
| 20 | 3181534 | Rack, Roasting |
|
- |
