01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub

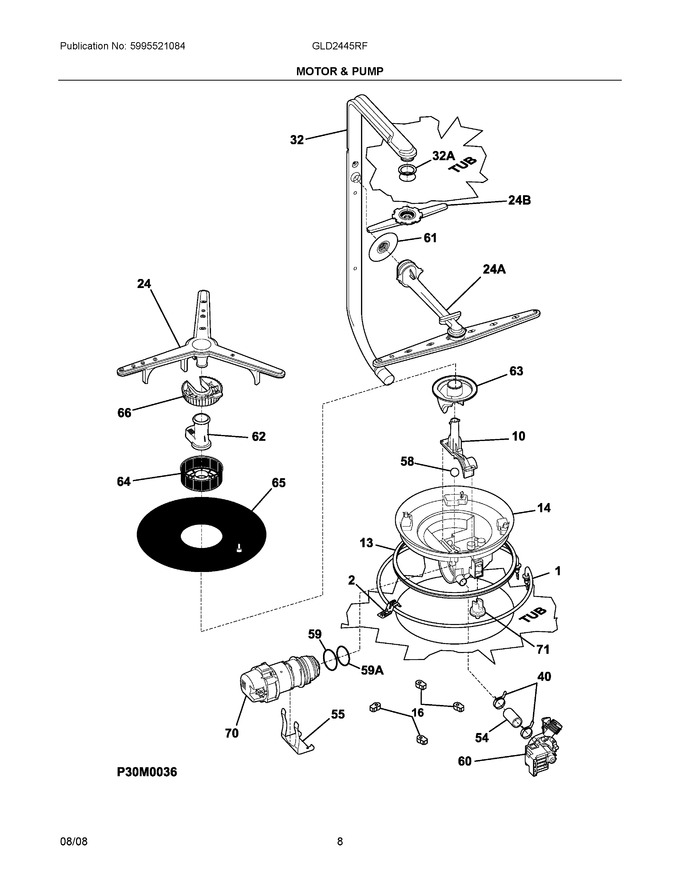

05 - Motor & Pump
06 - Frame
07 - Racks
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154825001 | Heater, Round (Replaces: 154482901) |
|
Immediately | $ 101.32 | ||||
| 2 | 154465101 | Bracket, Heater, (2) |
|
Immediately | $ 12.60 | ||||
| 10 | 807145201 | Cover, Volute (Replaces: 154245501) |
|
Immediately | $ 24.32 | ||||
| 13 | 154246801 | Gasket, Sump |
|
$ 57.97 | |||||
| 14 | 154461902 | Housing, Sump |
|
$ 346.50 | |||||
| 16 | 154246502 | Retainer, Sump |
|
Immediately | $ 44.89 | ||||
| 24 | 154608102 | Spray Arm, Grey, Lower (Replaces: 154467702) |
|
Immediately | $ 61.43 | ||||
| 32 | 5304507087 | Tube, Delivery (Replaces: 154464101) |
|
Immediately | $ 67.26 | ||||
| 40 | 154611101 | Clamp, Hose, 1.29" Open, Worm Gear, (2) (Replaces: 154106801) |
|
$ 13.39 | |||||
| 54 | 154491201 | Hose, Connector, Drain Pump |
|
- | |||||
| 55 | 5304534830 | Bracket, Motor (Replaces: 154595901) |
|
$ 6.16 | |||||
| 58 | 154246402 | Check Ball |
|
Immediately | $ 62.21 | ||||
| 59 | 154246901 | O-ring, Rear |
|
Immediately | $ 63.00 | ||||
| 60 | 154580301 | Pump Assy, Drain |
|
Immediately | $ 89.73 | ||||
| 61 | 5304532204 | Grommet, Delivery Tube (Replaces: 154463402) |
|
Immediately | $ 9.53 | ||||
| 62 | 5304532235 | Support, Spray Arm, Grey, Lower (Replaces: 154294102) |
|
Immediately | $ 8.14 | ||||
| 63 | 5304532205 | Base, Soil Director (Replaces: 154252201) |
|
Immediately | $ 15.27 | ||||
| 64 | 5304532205 | Filter, Soil Director, Grey (Replaces: 154252302) |
|
Immediately | $ 15.27 | ||||
| 65 | 154283005 | Filter Assy, Grey |
|
$ 281.14 | |||||
| 66 | 5304532206 | Trap, Glass, Grey (Replaces: 154252702) |
|
Immediately | $ 12.48 | ||||
| 70 | 154859201 | Motor & Pump Assy, Johnson, 2900 (Replaces: 154700101) |
|
Immediately | $ 423.62 | ||||
| 71 | 154473901 | Sensor, Turbidity |
|
$ 236.96 | |||||
| 24A | A01986801 | Spray Arm, Grey, Center (Replaces: 154468502) |
|
Immediately | $ 209.32 | ||||
| 24B | 5304506516 | Spray Arm, Assembly, 3rd Level (Replaces: 154698902) |
|
Immediately | $ 35.71 | ||||
| 32A | 154406401 | Gasket, Delivery Tube |
|
Immediately | $ 17.18 | ||||
| 59A | 154247001 | O-ring, Front |
|
Immediately | $ 63.00 | ||||
| NI | 154200601 | Screw, #10-16 X 3/8 |
|
$ 7.98 | |||||
| NIA | 5303316032 | Screw, Truss Ss, 8 .625, (7) |
|
$ 10.45 | |||||
| NIA | 154106202 | Nut, Heater, (2) |
|
Immediately | $ 20.35 | ||||
| NIA | 154380601 | Clamp, Hose, 1.5" Open, Worm Gear, (5) |
|
$ 81.90 | |||||
| NIA | 154376001 | O-ring, Turbidity |
|
$ 8.57 | |||||
| NIA | 154491101 | Screw, Delivery Tube |
|
$ 4.02 | |||||
| NIB | 154289801 | Shield, Heater Terminal |
|
$ 7.33 |
