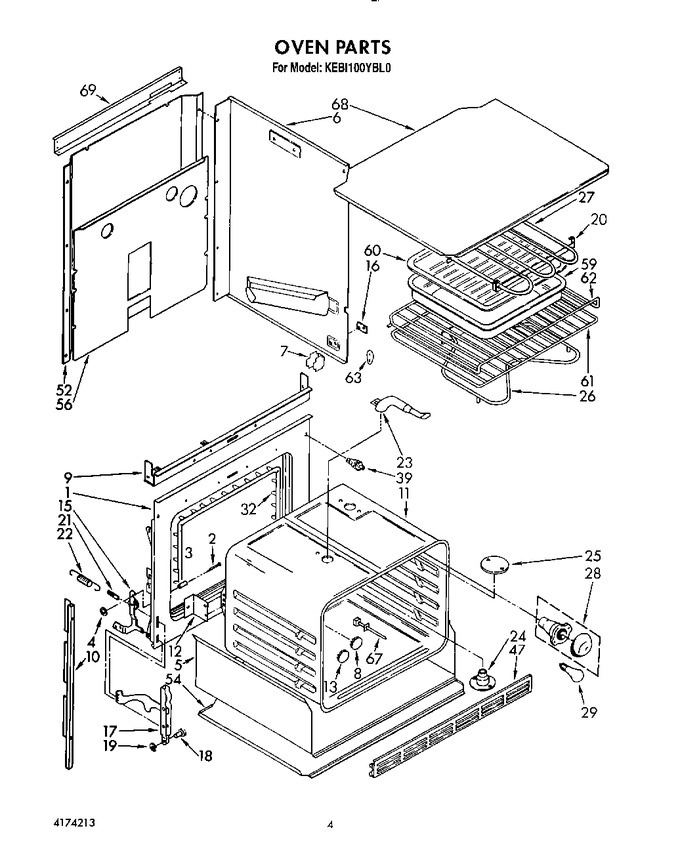

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172194		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	310770		Insulation Tray		Appelez-nous	-
6	311008		Side Wrapper (l.h.)		Appelez-nous	-
6	WP488729		Screw (14)   (Replaces: 3148107)			Immediately	$ 7.79
6	311005		Side Wrapper (r.h.)		Appelez-nous	-
6	WP681414		Screw, Ground (6)   (Replaces: 690989)			Immediately	$ 7.85
7	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.79
7	311774		Support, Side Wrapper (4)		Appelez-nous	-
8	3185086		Button, Plug		Appelez-nous	-
9	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.79
9	3183796		Baffle, Top Insulation		Appelez-nous	-
10	WP488729		Screw (8)   (Replaces: 3148107)			Immediately	$ 7.79
10	310685		Side Trim L.h.		Appelez-nous	-
10	310689		Side Trim (r.h.)		Appelez-nous	-
11	311056		Screw (3)		Appelez-nous	-
11	3182032		Oven		Appelez-nous	-
12	310713		Bracket, Oven Mounting (2)		Appelez-nous	-
13	3182814		Button, Plug		Appelez-nous	-
15	328801		Hinge Ear, R.h.		Appelez-nous	-
15	328802		Hinge Ear, L.h.		Appelez-nous	-
16	310659		Plate, Side Panel (2)		Appelez-nous	-
16	WP308544		Screw (4)   (Replaces: 308544)			Immediately	$ 7.76
17	329713		Channel Arm (2)		Appelez-nous	-
18	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 13.09
19	307594		Ring, Retainer (2)		Appelez-nous	-
20	WP488729		Screw (2)   (Replaces: 313638)			Immediately	$ 7.79
20	3180694		Bracket, Element		Appelez-nous	-
21	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 12.16
22	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 42.39
23	3183792		Tube, Vent		Appelez-nous	-
23	WP681414		Screw (4)   (Replaces: 343641)			Immediately	$ 7.85
24	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.79
24	310839		Eliminator, Smoke		Appelez-nous	-
25	310662		Plate, Cover		Appelez-nous	-
25	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.79
26	3150532		Screw (2)		Appelez-nous	-
26	WP661416		Unit, Bake   (Replaces: 661416)				$ 145.92
27	3150532		Screw (4)		Appelez-nous	-
27	3182451		Unit, Broil		Appelez-nous	-
28	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 87.01
28	308043		Screw (2)		Appelez-nous	-
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
32	3185197		Seal, Front		Appelez-nous	-
39	310345		Switch, Door				$ 94.86
47	3150349		Bottom Grill (black Model)		Appelez-nous	-
47	309029		Bottom Grill (screw (3))		Appelez-nous	-
47	3150350		Bottom Grill (white Model)		Appelez-nous	-
47	WP488627		Bottom Grill (screw (3))   (Replaces: 338156)				$ 7.57
52	WP488729		Screw (3)   (Replaces: 3148107)			Immediately	$ 7.79
52	311011		Cover, Rear		Appelez-nous	-
53	308043		Screw (2)		Appelez-nous	-
53	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.96
53	WP8203546		Terminal Block   (Replaces: 258076)			Immediately	$ 30.13
54	WP488729		Screw (8)   (Replaces: 3148107)			Immediately	$ 7.79
54	310458		Cover, Bottom		Appelez-nous	-
59	4396923		Pan, Broiler   (Replaces: 3147845)			Immediately	$ 57.82
60	4396923		Grid, Broiler Pan   (Replaces: 3147563)			Immediately	$ 57.82
61	308173		Rack, Oven		Appelez-nous	-
62	308172		Rack, Oven (offset)		Appelez-nous	-
67	3148440		Sensor, Heat		Appelez-nous	-
67	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.79
68	3184099		Cover, Top		Appelez-nous	-
69	310434		Insulation, Oven		Appelez-nous	-
69	3182585		Bracket, Control Panel Mounting		Appelez-nous	-
69	310433		Insulation, Wrap		Appelez-nous	-
69	3149328		Insulation, Top		Appelez-nous	-
	LIT3182129		Tech Sheet		Appelez-nous	-
	LIT3182137		Installation Instructions		Appelez-nous	-
	LIT4174213		Repair Parts List		Appelez-nous	-
	LIT3182134		Use & Care Guide		Appelez-nous	-
