SELECT A DIAGRAM

01 - Oven


02 - Control Panel, Literature


03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional

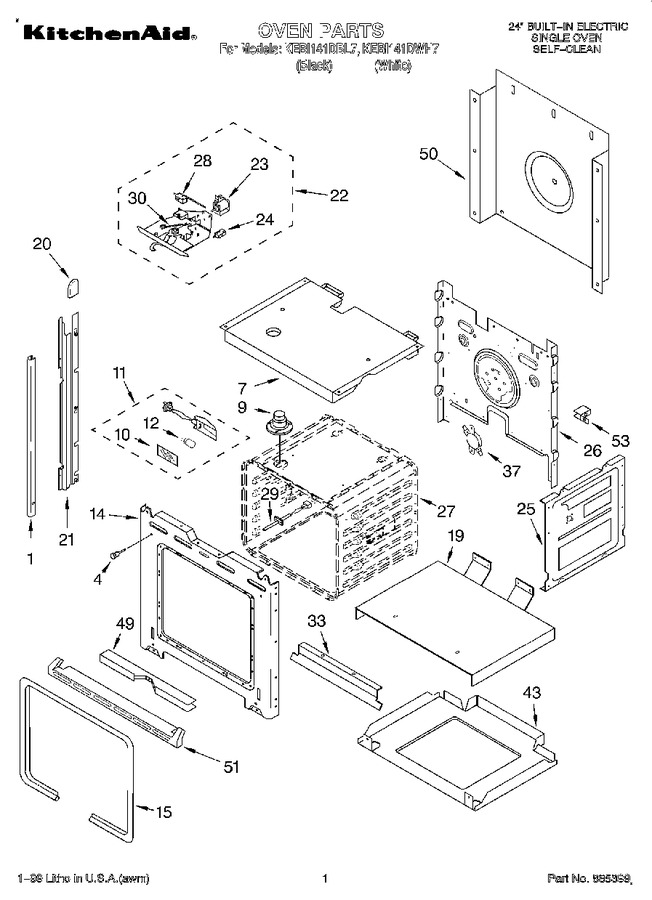

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450845		Trim, Side (white, Right)		Appelez-nous	-
1	4450848		Trim, Side (lh White)		Appelez-nous	-
1	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 8.16
1	4449041		Trim, Side (screw White)				$ 5.27
1	4450844		Trim, Side (rh Black)		Appelez-nous	-
1	4450847		Trim, Side (lh Black)		Appelez-nous	-
4	4448520		Bumper, Door				$ 22.25
7	4455863		Top, Chassis   (Replaces: 4452235)				$ 117.60
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 14.23
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	9760754		Frame, Front   (Replaces: 4451738)				$ 132.66
15	WP4455380		Gasket, Door   (Replaces: 4449370)			Immediately	$ 174.79
19	4451476		Support, Insulation		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4451605		Cap, Spacer				$ 38.55
21	814372		Rail, Side (left)   (Replaces: 4450580)				$ 126.74
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	814371		Rail, Side (right)   (Replaces: 4450579)				$ 127.79
22	4451896		Latch Assembly				$ 163.41
23	4452224		Solenoid		Appelez-nous	-
24	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	4451422		Micro Switch N.c.		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452232		Back, Chassis		Appelez-nous	-
28	4451426		Microswitch		Appelez-nous	-
29	4451665		Sensor				$ 107.99
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
30	4451537		Spring, Latch		Appelez-nous	-
33	4451615		Deflector, Vent		Appelez-nous	-
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP9759242		Thermostat (tod) (temp.) Spst   (Replaces: 4452223)			Immediately	$ 85.57
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
43	4450525		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4448474		Trim, Bottom (white Model)		Appelez-nous	-
51	4159465		Trim, Bottom (screw)		Appelez-nous	-
51	4448473		Trim, Bottom (black Model)		Appelez-nous	-
53	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 189.22
53	4449845		Bracket-support		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 189.64
