SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel

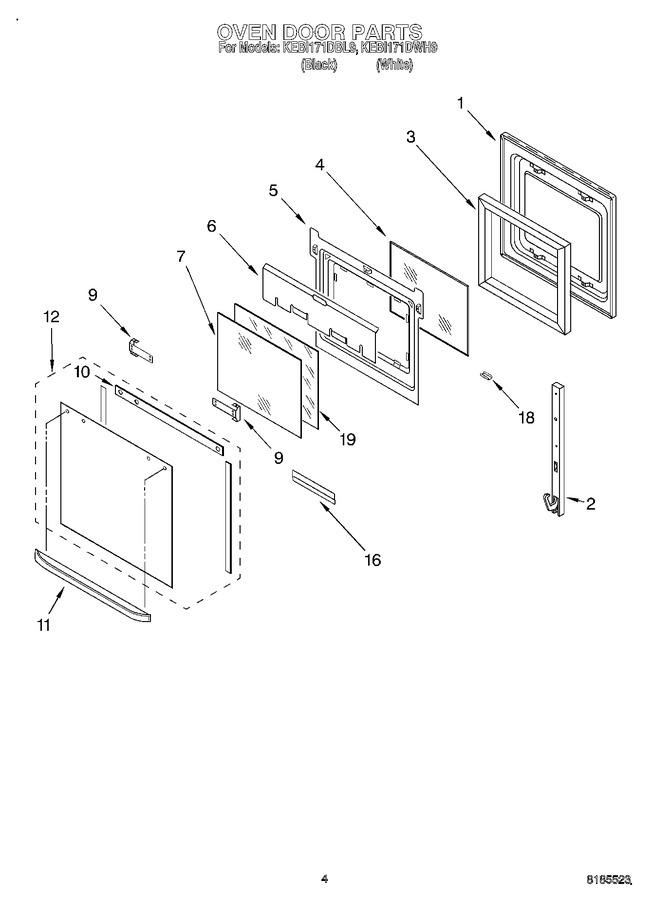

03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451718		Door Liner		Appelez-nous	-
2	WP4455524		Hinge, Door   (Replaces: 4454947)			Immediately	$ 78.20
2	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
3	4451721		Insulation, Sides				$ 37.62
4	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
5	4451670		Retainer, Glass		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
6	4450361		Shield, Heat		Appelez-nous	-
7	WP4449257		Glass, Inner   (Replaces: 4449257)			Immediately	$ 208.31
9	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
9	W10276642		Screw   (Replaces: 4451040)				$ 6.41
9	4450813		Bracket, Handle				$ 24.20
10	4451673		Seal, Top		Appelez-nous	-
11	4448411		Handle (black Model)		Appelez-nous	-
11	4448412		Handle (white Model)		Appelez-nous	-
12	4452072		Door Glass, Assy (white Model)		Appelez-nous	-
12	4452071		Door Glass, Assy (black Model)		Appelez-nous	-
16	4451668		Retainer, Glass		Appelez-nous	-
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
18	4450863		Clip, Retainer (black Model)		Appelez-nous	-
18	WP4449743		Clip, Retainer (screw)   (Replaces: 4449743)				$ 7.55
18	4450864		Clip, Retainer (white Model)		Appelez-nous	-
19	4455256		Glass, Inner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
