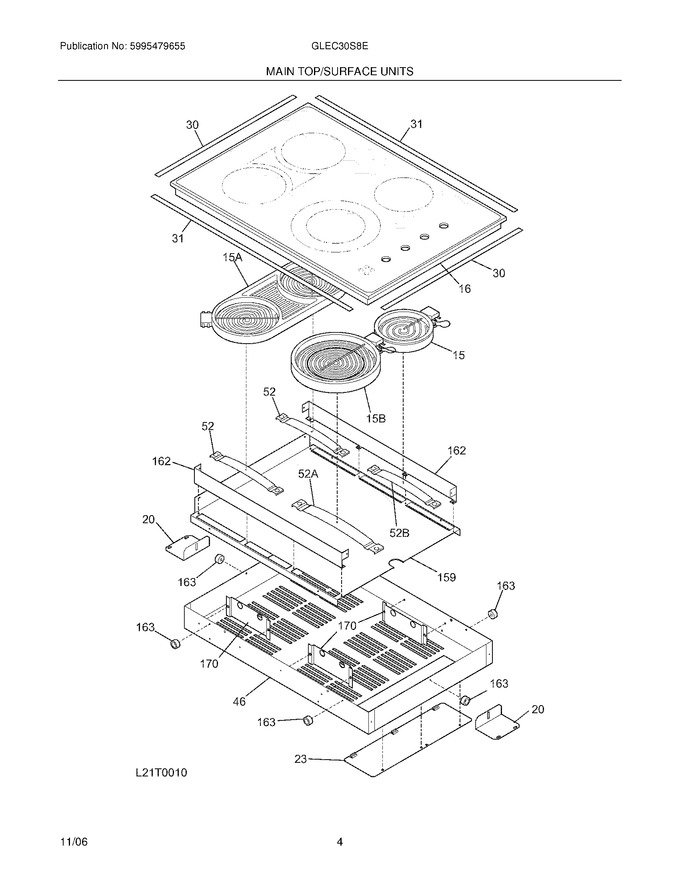

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318282511		Main Top Assy,glass/steel ,white				$ 695.20
20	318121902		Bracket,retainer				$ 52.25
23	318194703		Panel,service ,black		Appelez-nous	-
30	318052604		Gasket,glass ,20.25`` ,side ,(2)		Appelez-nous	-
31	318052605		Gasket,glass ,30.25`` ,front/back ,(2)				$ 6.23
46	318077232		Burner Box		Appelez-nous	-
52	318122008		Spring,element Mtg ,1800w/3000w				$ 100.89
159	318125113		Deflector		Appelez-nous	-
162	318161401		Deflector		Appelez-nous	-
163	318531702		Spacer,(6)   (Replaces: 318014110)				$ 11.03
170	318124911		Screen,thermal		Appelez-nous	-
52A	318122010		Spring,element Mtg ,3000w				$ 69.46
52B	318122006		Spring,element Mtg ,small				$ 73.61
F15	318178110		Element,surface ,6`` ,1200 W ,(2)   (Replaces: 318198830)			Immediately	$ 136.51
F15A	318258203		Element,bridge ,1800/2600			Immediately	$ 412.65
F15B	316555800		Element,surface ,6/9 ,1200/2500w ,dual Radiant   (Replaces: 318198932)			Immediately	$ 175.75
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	318078529		Box & Wires Assy		Appelez-nous	-
NI	318199465		Harness,wiring ,main		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
