01 - Oven


02 - Control Panel, Literature


03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional

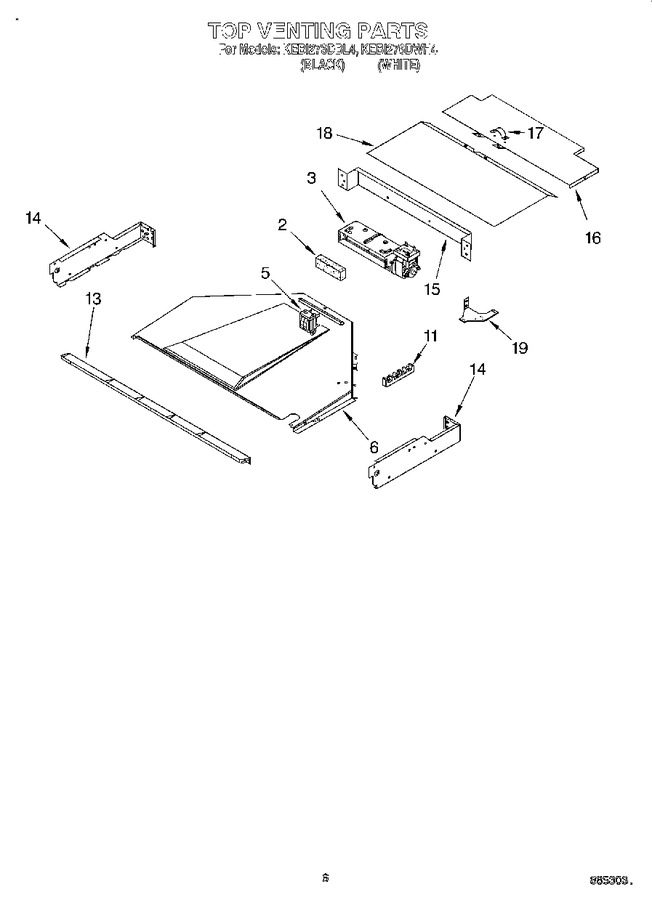

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3182384		Foam, Block		Appelez-nous	-
3	4450920		Blower		Appelez-nous	-
3	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
5	WP9760588		Transformer, (lights)   (Replaces: 4450328)				$ 276.58
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
6	4450366		Exhaust Duct		Appelez-nous	-
11	WP3387230		Screw   (Replaces: 3196181)			Immediately	$ 8.54
11	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 30.13
13	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
13	4448551		Vent, (control Panel)		Appelez-nous	-
14	WP4449154		Side, Control Top (screw)   (Replaces: 4449154)				$ 8.16
14	W10755214		Side, Control Top (right)   (Replaces: 4448371)		Appelez-nous	-
14	W10790240		Side, Control Top (left)   (Replaces: 4448372)				$ 78.41
14	WP4449809		Side, Control Top (screw)   (Replaces: 4449809)			Immediately	$ 7.55
15	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
15	4450658		Back, Control		Appelez-nous	-
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
16	4450550		Cover, Top Rear				$ 32.95
17	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
17	WP112432		Nut   (Replaces: 112432)				$ 8.63
17	4448664		Clamp				$ 21.41
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
18	4450553		Cover, Top Front		Appelez-nous	-
19	WP4448950		Screw, Install (4)   (Replaces: 4448950)				$ 8.16
19	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
19	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
19	4450800		Screw				$ 13.47
19	4448664		Clamp				$ 21.41
19	WP112432		Nut   (Replaces: 112432)				$ 8.63
19	WP4456654		Fuse Assy (service Only)   (Replaces: 4450815)				$ 37.11
19	814381		Pin Hinge Kit				$ 11.28
19	814387		Roll Tape, Exhaust Duct		Appelez-nous	-
19	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
19	4450545		Bracket, Blower		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 27.83
19	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
19	261900		Citrine White				$ 59.89
19	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)				$ 59.89
19	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
19	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 63.51
19	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
19	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
19	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
19	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
19	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
19	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
19	242829		Wire (12 Ga. 150 C Red)		Appelez-nous	-
19	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
19	242831		Wire (14 Ga. 200 C Red)				$ 342.23
19	242826		Wire (14 Ga. 150 C White)		Appelez-nous	-
19	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
19	242832		Wire (14 Ga. 200 C Yellow)		Appelez-nous	-
19	4454871		Harness, Wire (door Switch) (also, Order Main Harness)		Appelez-nous	-
19	WP488366		Clamp   (Replaces: 488366)				$ 11.92
19	4454709		Harness, Wire (latch)		Appelez-nous	-
19	4454852		Harness, Wire (main) (also, Order Door Switch Harness)		Appelez-nous	-
19	4450953		Conduit				$ 311.24
