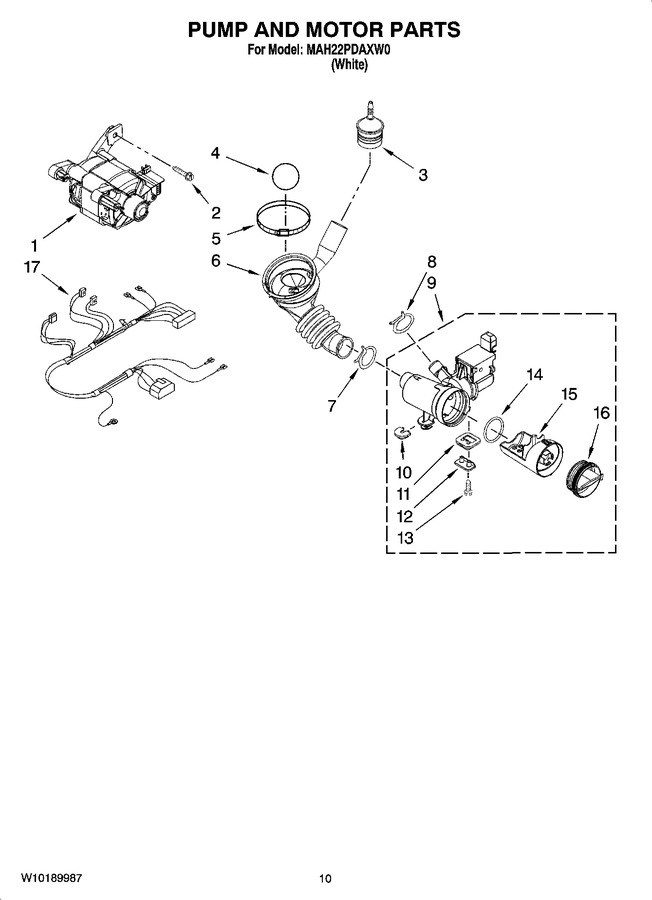

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10140579 | Motor, Drive |
|
$ 321.07 | |||||
| 2 | 8540134 | Bolt, Motor |
|
$ 13.45 | |||||
| 3 | WPW10405608 | Air Trap (Replaces: 8540180) |
|
Immediately | $ 7.91 | ||||
| 4 | 8540013 | Ball |
|
$ 20.12 | |||||
| 5 | WP696392 | Clamp (Replaces: 8540008) |
|
$ 8.12 | |||||
| 6 | W11366249 | Hose, Tub To Pump (Replaces: 8540012) |
|
Immediately | $ 51.94 | ||||
| 7 | WP616099 | Clamp, Hose (Replaces: 370448) |
|
Immediately | $ 7.81 | ||||
| 8 | WP356138 | Clamp, Drain Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 9 | 8540094 | Pump Motor Only (not Illustrated) |
|
- | |||||
| 9 | WPW10730972 | Pump (complete) (Replaces: W10130913) |
|
Immediately | $ 177.38 | ||||
| 10 | W10034820 | Foot, Rubber (slider) (Replaces: W10191886) |
|
$ 12.79 | |||||
| 11 | W10191880 | Foot, Rubber (lock) |
|
- | |||||
| 12 | 8540033 | Cap, Lock Foot (Replaces: W10190649) |
|
$ 17.98 | |||||
| 13 | 8533964 | Screw, 10-16 X 1.00 (2) (Replaces: W10167905) |
|
$ 12.00 | |||||
| 14 | WPW10730972 | Seal, Filter Cap (Replaces: W10201457) |
|
Immediately | $ 177.38 | ||||
| 15 | WPW10730972 | Filter (includes Items 14 & 16) (Replaces: W10190647) |
|
Immediately | $ 177.38 | ||||
| 16 | WPW10730972 | Cap, Filter (includes Items 14 & 15) (Replaces: W10190648) |
|
Immediately | $ 177.38 | ||||
| 17 | W10166995 | Harness, Motor |
|
$ 170.24 |
