SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts

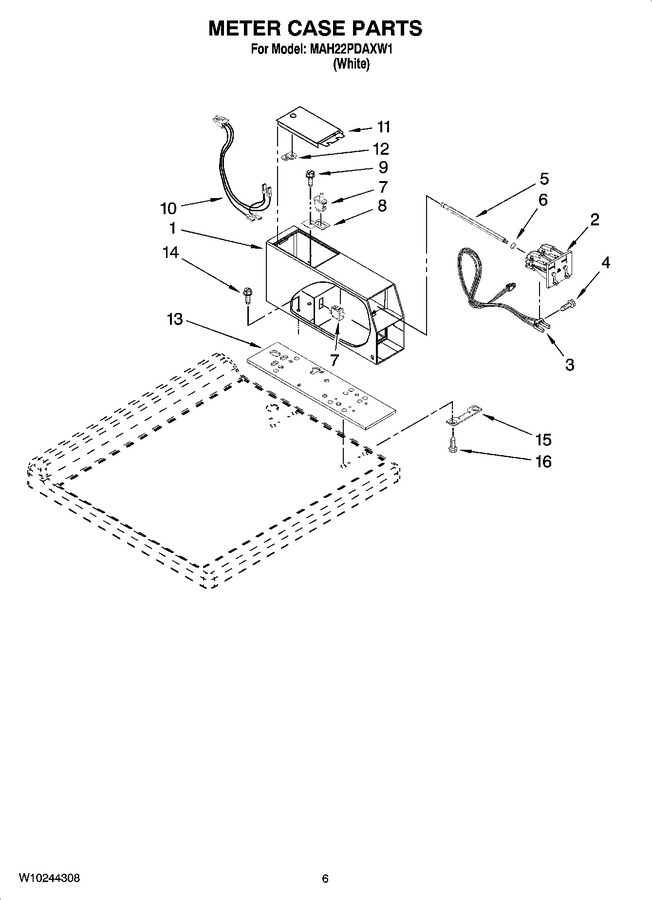

04 - Meter Case Parts


05 - Dispenser Parts


06 - Tub And Basket Parts


07 - Pump And Motor Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10171128		Meter Case   (Replaces: W10171128)				$ 342.27
2	W11643135		Coin Drop Assembly   (Replaces: W10133245)				$ 568.97
3	WPW10247389		Sensor Assembly, Coin Optic (2)   (Replaces: W10130178)			Immediately	$ 115.90
4	WP3395530		Screw, 6.20 X 1.00 (2)   (Replaces: W10142655)				$ 7.70
5	WPW10137319		Bolt, Hex Bar (2)   (Replaces: W10137319)				$ 81.30
6	W11170663		Washer (2)   (Replaces: W10068270)				$ 4.32
7	WPW10131838		Switch-vault & Service Door   (Replaces: W10131838)				$ 23.91
8	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
9	WPW10139210		Screw, 8-18 X 5/16   (Replaces: W10139210)				$ 7.50
10	W10847806		Wire Harness, Sensor Switch   (Replaces: W10139456)				$ 113.80
11	W11283272		Service Door Assembly   (Replaces: 3351136)				$ 105.88
12	W11401086		Cam - Lock   (Replaces: W10145154)				$ 6.17
13	W10137448		Cushion, Meter Case		Appelez-nous	-
14	W11715721		Screw, 5/16-24 X 1   (Replaces: 3349065)				$ 7.12
15	3347825		Plate, Meter Case Mounting (2)		Appelez-nous	-
16	W10841059		Screw, 10-16 X 3/4   (Replaces: 98445)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
