SELECT A DIAGRAM

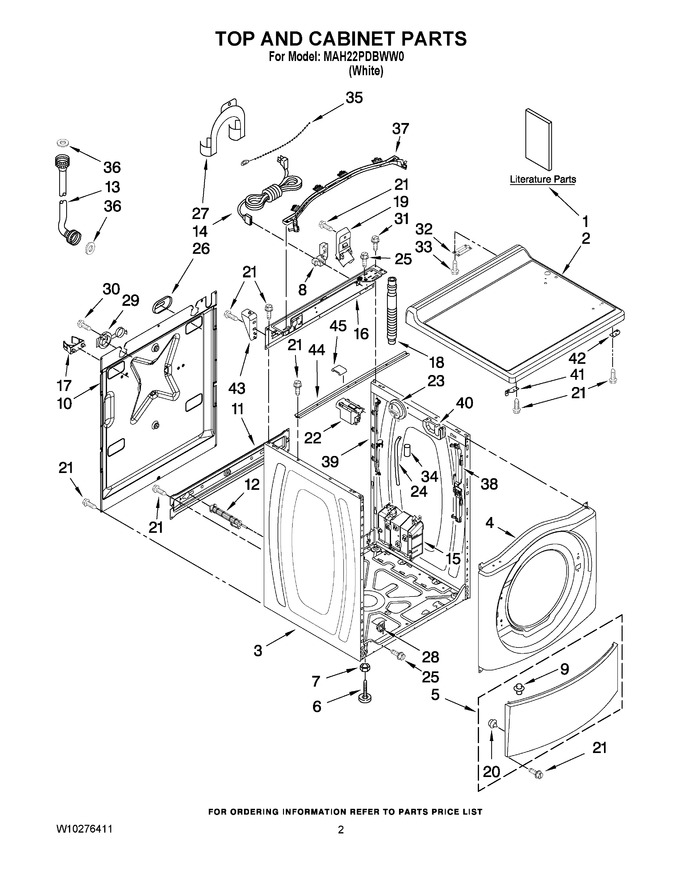

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Meter Case Parts


05 - Dispenser Parts


06 - Tub And Basket Parts


07 - Pump And Motor Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10277179		Installation Instructions		Appelez-nous	-
1	W10273155		Tech Sheet (english)		Appelez-nous	-
1	W10273156		Tech Sheet (french)		Appelez-nous	-
1	W10276411		Repair Parts List		Appelez-nous	-
2	WPW10137411		Top   (Replaces: W10137411)				$ 390.48
3	W10410294		Cabinet   (Replaces: W10201831)				$ 367.09
4	WPW10306505		Panel, Front   (Replaces: W10112948)				$ 356.83
5	WP8540664		Toe Panel   (Replaces: 8540813)				$ 359.15
6	W10862938		Foot, Leveling (4)   (Replaces: W10245373)			Immediately	$ 12.59
7	WP3359452		Nut, Lock (4)   (Replaces: 3359452)			Immediately	$ 7.19
8	8182635		Strain Relief, Power Cord   (Replaces: W10110676)				$ 16.72
9	8518891		Rivet				$ 13.40
10	8540582		Panel, Rear		Appelez-nous	-
11	W10189659		Brace, Transport				$ 43.19
12	W10763471		Bolt, Shipping (4)   (Replaces: 8540199)				$ 40.12
13	WP89503		Hose, Water Inlet (hot Water)   (Replaces: 8571378)			Immediately	$ 24.09
13	WP89503		Hose, Water Inlet (cold Water)   (Replaces: W10194208)			Immediately	$ 24.09
14	W11764783		Cord, Power   (Replaces: W10205500)				$ 43.66
15	WPW10197864		Motor Control Unit   (Replaces: W10197864)			Immediately	$ 406.82
16	W10161694		Brace, Rear				$ 113.73
17	W10182936		Clamp, Tube Transportation		Appelez-nous	-
18	WPW10114608		Hose, Drain   (Replaces: W10114608)			Immediately	$ 23.01
19	8540607		Retainer, Hose Outlet				$ 6.96
20	238614		Bumper (2)				$ 80.76
21	WP489442		Screw, 8-18 X 5/8   (Replaces: W10015090)			Immediately	$ 10.94
22	WPW10367632		Filter, Interference   (Replaces: 8540230)				$ 122.22
23	W10163980		Switch, Pressure				$ 87.59
24	W11252474		Hose, Pressure Switch   (Replaces: 8540294)			Immediately	$ 35.23
25	8540479		Screw, Grounding				$ 8.78
26	WP8540268		Cover, Transport   (Replaces: 8540268)				$ 6.95
27	WPW10280024		U-bend, Drain Hose   (Replaces: 8540021)				$ 79.53
28	WPW10085220		Microswitch (2)   (Replaces: W10085220)				$ 33.25
29	W11116978		Sleeve, Cord Support (2)   (Replaces: 8540728)				$ 22.80
30	8182201		Screw, 3 X 8 Mm   (Replaces: 8540727)				$ 13.41
31	8540329		Screw		Appelez-nous	-
32	WP8565018		Hinge & Pin Assembly   (Replaces: 8565018)				$ 109.85
33	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.57
34	W11751592		Sleeve, Pressure Switch Hose   (Replaces: 2161302)			Immediately	$ 20.30
35	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.90
36	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.70
37	W10168548		Harness Channel, Top Rear		Appelez-nous	-
38	W10200785		Harness Channel, Side Front   (Replaces: W10168546)				$ 9.09
39	W10168547		Harness Channel, Side Rear				$ 18.63
40	8540643		Bracket, Spring				$ 12.25
41	W10137445		Bracket - Top Panel, Left		Appelez-nous	-
42	W10137444		Bracket - Top Panel, Right		Appelez-nous	-
43	W10137398		Stop - Top Panel		Appelez-nous	-
44	WP8540721		Brace, Top   (Replaces: 8540721)				$ 49.77
45	WP8283273		Damper, Brace (6)   (Replaces: 8283273)				$ 27.05

    View Diagram in Separate Window       Print Part List
