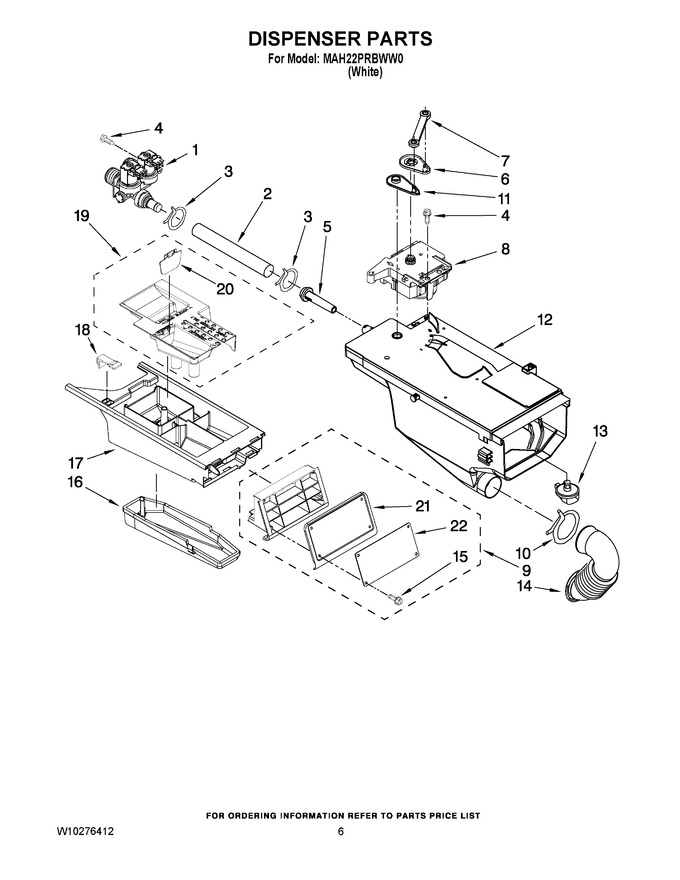

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8540751 | Valve, Inlet (Replaces: 8540751) |
|
Immediately | $ 76.65 | ||||
| 2 | W10803052 | Hose, Valve To Dispenser (Replaces: 8540065) |
|
$ 14.40 | |||||
| 3 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 8.82 | ||||
| 4 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 12.14 | |||||
| 5 | WP8183181 | Nozzle, Inlet (Replaces: 8540042) |
|
$ 94.82 | |||||
| 6 | WP8540393 | Cam, Actuator (Replaces: 8540393) |
|
$ 7.55 | |||||
| 7 | WP8540394 | Lever, Water Distribution (Replaces: 8540394) |
|
$ 7.55 | |||||
| 8 | WPW10143586 | Actuator (Replaces: W10143586) |
|
Immediately | $ 123.70 | ||||
| 9 | W10595632 | Handle Assembly, Drawer (Replaces: W10137428) |
|
$ 150.40 | |||||
| 10 | W11622908 | Clamp, Hose (Replaces: 8281276) |
|
$ 23.33 | |||||
| 11 | WP8540395 | Connection, Lever (Replaces: 8540395) |
|
$ 7.30 | |||||
| 12 | 8540058 | Dispenser |
|
$ 77.13 | |||||
| 13 | WP8540053 | Nozzle, Distribution (Replaces: 8540053) |
|
$ 104.71 | |||||
| 14 | W11366227 | Hose, Dispenser To Tub (Replaces: 8540063) |
|
Immediately | $ 23.35 | ||||
| 15 | WPW10137456 | Screw, 8-18 X 1/2 (Replaces: W10137456) |
|
$ 8.61 | |||||
| 16 | WP8540399 | Cover, Detergent Drawer (Replaces: 8540399) |
|
$ 78.59 | |||||
| 17 | WP8540402 | Drawer, Detergent (Replaces: 8540402) |
|
Immediately | $ 137.17 | ||||
| 18 | WPW10198458 | Hook, Drawer (Replaces: W10137402) |
|
$ 7.77 | |||||
| 19 | W10433390 | Siphon, Bleach/softener (Replaces: W10277537) |
|
Immediately | $ 83.44 | ||||
| 20 | WPW10298953 | Door, Living Hinge (Replaces: W10276474) |
|
$ 6.75 | |||||
| 21 | WPW10137460 | Cover, Handle (Replaces: W10137460) |
|
Immediately | $ 109.86 | ||||
| 22 | WPW10440593 | Facia/overlay, Drawer (Replaces: W10137430) |
|
$ 57.18 |
