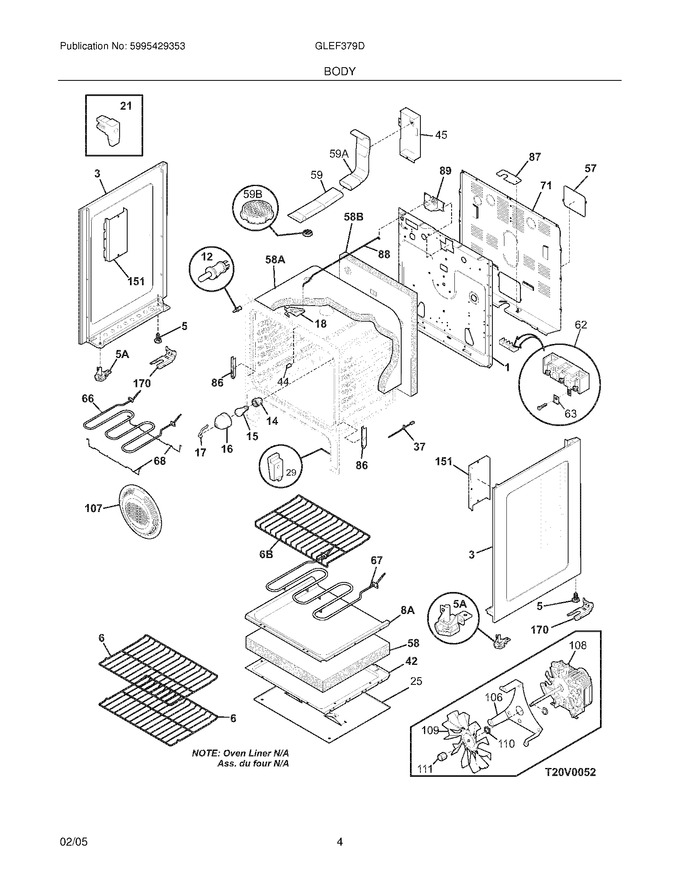

05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401800		Panel,main Back		Appelez-nous	-
3	316400145		Panel,bodyside ,black ,lh   (Replaces: 316400105)			Immediately	$ 148.81
3	316400144		Panel,bodyside ,black ,rh   (Replaces: 316400104)			Immediately	$ 149.65
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 30.55
6	316404500		Rack,oven				$ 124.95
14	316116400		Receptacle,oven Light			Immediately	$ 62.33
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 19.07
17	316087500		Retainer,lens				$ 63.00
21	316408000		Clip,bodyside				$ 20.22
25	5303289914		Shield-heat Lower		Appelez-nous	-
29	807047102		Glide,drawer ,front   (Replaces: 316407301)			Immediately	$ 26.47
42	316407700		Shield,wool ,lower				$ 145.77
44	316246501		Spacer,oven Door				$ 12.13
45	316234100		Shield,wire ,vent Tube				$ 77.96
57	316422400		Cover,access		Appelez-nous	-
58	316403801		Insulation,oven Sump		Appelez-nous	-
59	316208200		Tube,oven Vent ,lower		Appelez-nous	-
62	5303935238		Terminal Block Kit,w/ground Plate				$ 112.61
63	316278800		Plate,grounding Strap		Appelez-nous	-
66	316430900		Element,broil ,4000w			Immediately	$ 284.67
67	316415900		Element,bake ,3500w ,6 Pass			Immediately	$ 288.05
68	316429100		Support,element ,broil				$ 69.46
71	316422300		Shield,rear Wall		Appelez-nous	-
86	316441300		Receptacle,hinge				$ 24.41
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316203500		Rod,auto Latch				$ 80.33
106	316404100		Bracket,motor Mtg.				$ 70.78
107	316026701		Cover,fan				$ 454.32
109	318398302		Blade,fan   (Replaces: 316136400)			Immediately	$ 32.34
110	316008401		Washer,fan Motor   (Replaces: 316136500)				$ 12.60
111	316136600		Nut,fan Retainer			Immediately	$ 21.26
151	316404600		Shield,bodyside				$ 49.30
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 21.01
170	316112500		Template,anti-tip				$ 3.94
170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 14.32
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 21.01
58A	316406604		Insulation,oven Wrapper   (Replaces: 316406600)			Immediately	$ 77.52
58B	316406500		Insulation,oven Back				$ 98.44
59A	316208304		Tube,oven Vent ,upper   (Replaces: 316208302)				$ 88.99
59B	316247300		Catalyst,oven Vent ,ceramic				$ 110.25
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316407200)			Immediately	$ 16.76
6B	316425400		Rack,oven				$ 149.13
8A	316411102		Base,bake Element				$ 123.27
F108	5304467898		Motor,fan   (Replaces: 316415800)			Immediately	$ 250.74
F12	316445500		Switch,oven Light/door   (Replaces: 316407100)			Immediately	$ 60.82
F18	316405800		Latch Assembly,oven Door			Immediately	$ 63.04
F37	316490001		Probe,oven Temp   (Replaces: 316217001)			Immediately	$ 76.44
F89	5304528973		Motor,latch/lock   (Replaces: 316415400)			Immediately	$ 58.16
NI	5308014215		Screw`6-20 X 0.312				$ 2.53
NI	316085600		Insulator		Appelez-nous	-
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 12.60
NI	316418901		Screw,trilobe ,10-32 X 5/16``				$ 15.75
NI	316416406		Harness,wiring ,main		Appelez-nous	-
NI	316231800		Cover,hole ,conv. Element		Appelez-nous	-
NI	5303321321		Paint,touch-up ,black   (Replaces: 5303305345)			Immediately	$ 24.41
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316021132		Screw,8-18 X 11/16 ,black				$ 14.32
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 14.96
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 14.96
