01 - Oven


02 - Oven Door


03 - Internal Oven


04 - Control Panel, Literature


05 - Top Venting, Optional

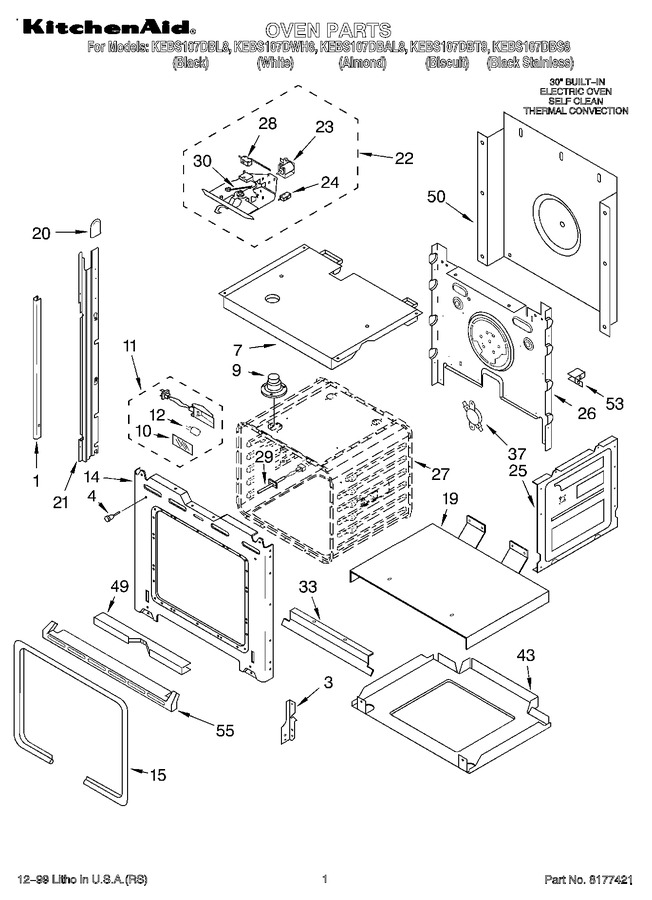

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450845		Trim, Side (white, Right)		Appelez-nous	-
1	4452121		Trim, Side (left Hand) (biscuit Model)		Appelez-nous	-
1	4449041		Trim, Side (left Hand) (screw)				$ 5.27
1	WP8281236		Trim, Side (left Hand) (screw)   (Replaces: 4449747)				$ 8.16
1	4450844		Trim, Side (right Hand) (black & Bs Models)		Appelez-nous	-
1	4450846		Trim, Side (right Hand) (almond Model)		Appelez-nous	-
1	4452120		Trim, Side (right Hand) (biscuit Model)		Appelez-nous	-
1	4450847		Trim, Side ((left Hand)) (black & Bs Models)		Appelez-nous	-
1	4450848		Trim, Side (left Hand) (white Model)		Appelez-nous	-
1	4450849		(trim, Side (left Hand)) (almond Model)		Appelez-nous	-
3	4454665		Reciever, Hinge (right Hand)		Appelez-nous	-
3	4454664		Reciever, Hinge (left Hand)		Appelez-nous	-
4	4448520		Bumper, Door				$ 22.25
7	4455190		Top, Chassis		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452163		Lens, Light				$ 12.33
11	4449748		Screw				$ 14.23
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 114.87
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 70.69
14	4451740		Frame, Front		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	W11675844		Gasket, Door   (Replaces: 4449372)			Immediately	$ 74.56
19	4451478		Support, Insulation				$ 54.10
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4451605		Cap, Spacer				$ 38.55
21	814371		Rail, Side (right)   (Replaces: 4450579)				$ 127.79
21	814372		Rail, Side (left)   (Replaces: 4450580)				$ 126.74
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
22	4451896		Latch Assembly				$ 163.41
23	4452224		Solenoid		Appelez-nous	-
24	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
24	4451422		Micro Switch N.c.		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
26	4452234		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
28	4451426		Microswitch		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	4451665		Sensor				$ 107.99
30	4451537		Spring, Latch		Appelez-nous	-
33	4451619		Deflector, Vent		Appelez-nous	-
37	WP9759242		Thermostat (tod) (temp.) Spst   (Replaces: 4452223)			Immediately	$ 85.57
43	4451398		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
53	4449845		Bracket-support		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
55	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
55	4450365		Insulation, Back				$ 70.95
55	4448477		Trim, Bottom (black & Bs Models)				$ 71.44
55	4448478		Trim, Bottom (white Model)		Appelez-nous	-
55	4448862		Trim, Bottom (almond Model)		Appelez-nous	-
55	4452415		Trim, Bottom (biscuit Model)		Appelez-nous	-
