SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel

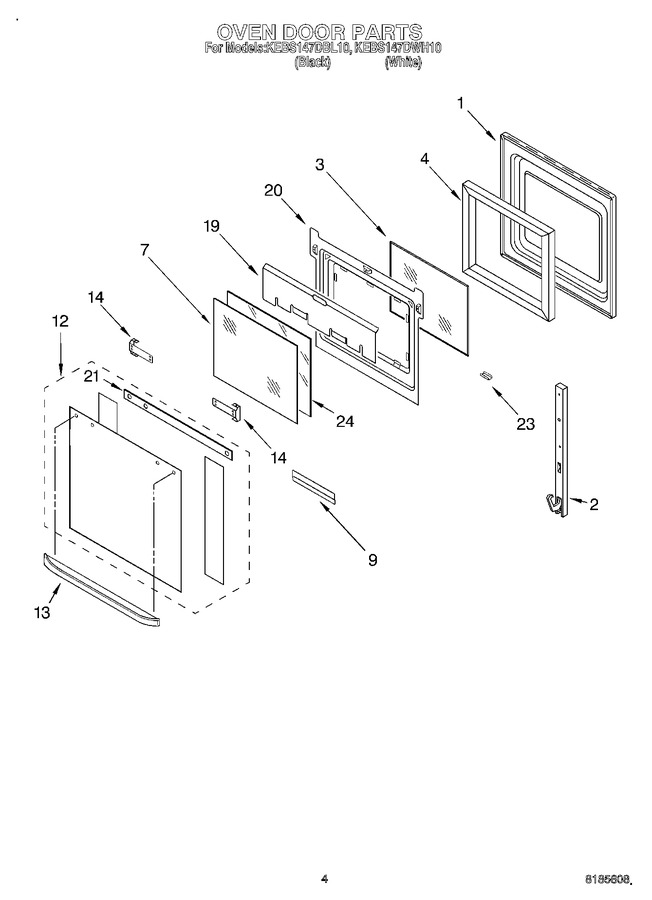

03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Liner, Door   (Replaces: 4451717)				$ 335.12
2	WP4455523		Hinge, Door   (Replaces: 4455523)				$ 66.30
2	WP4449743		Screw   (Replaces: 4449743)				$ 7.19
3	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 175.52
4	W11688413		Insulation, Door   (Replaces: 4451720)				$ 26.92
7	4449251		Glass, Inner		Appelez-nous	-
9	4451668		Retainer, Glass		Appelez-nous	-
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
12	4452069		Door Glass, Assy (white Model)		Appelez-nous	-
12	4452068		Door Glass, Assy (black Model)		Appelez-nous	-
13	4448408		Door Handle (black Model)		Appelez-nous	-
13	4448409		Door Handle (white Model)		Appelez-nous	-
14	WP4449743		Screw   (Replaces: 4449743)				$ 7.19
14	W10276642		Screw   (Replaces: 4451040)				$ 6.41
14	4450813		Bracket, Handle				$ 24.20
19	4450360		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
20	4451669		Retainer, Glass		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
21	4451672		Seal, Door Top		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
24	4455255		Glass, Inner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
