01 - Control Panel
02 - Top
03 - Cabinet
04 - Tub
05 - Transmission
06 - Base
07 - Clutch & Brake
08 - Supplemental Information
09 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

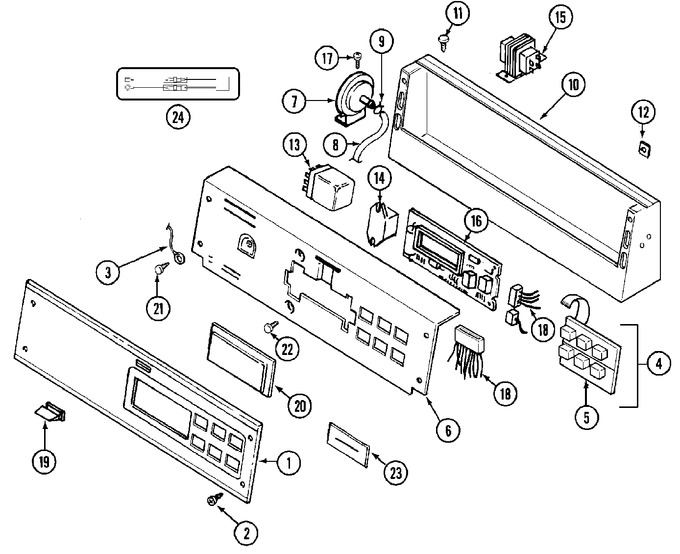

| 001 | 22001974 | Panel, Control | 10 |
|
- | ||||
| 001 | 22004286 | Facia - Pr | 12 |
|
- | ||||
| 001 | 22004318 | Facia - Pr Serial Numbers 12032022ea Thur | 13 |
|
- | ||||
| 002 | WPW10131119 | Screw, Control Panel (Replaces: 215506) | 10 |
|
$ 6.95 | ||||
| 003 | 22001959 | Wire, Ground | 10 |
|
- | ||||
| 004 | W10756178 | Screw, Switch (Replaces: 215527) | 10 |
|
$ 5.99 | ||||
| 004 | WPW10135389 | Control Switch Assembly (Replaces: 206808) | 10 |
|
$ 139.62 | ||||
| 005 | WPW10424308 | Pushbutton (Replaces: 215517) | 10 |
|
Immediately | $ 20.42 | |||
| 006 | WPW10143462 | Screw (Replaces: 315211) | 10 |
|
$ 6.00 | ||||
| 006 | M0282005 | Locknut (Replaces: 912077) | 10 |
|
$ 7.85 | ||||
| 006 | 22003207 | Bracket, Back (wht) | 10 |
|
$ 32.73 | ||||
| 007 | WP22001308 | Switch, Water Level (Replaces: 22001308) | 10 |
|
Immediately | $ 212.98 | |||
| 008 | WP22001619 | Tube, Air (Replaces: 22001619) | 10 |
|
$ 84.14 | ||||
| 009 | WP596669 | Clamp,water Level Swtch Tube (Replaces: 410296) | 10 |
|
Immediately | $ 8.40 | |||
| 010 | 22003093 | Console (wht) | 10 |
|
- | ||||
| 011 | WP489128 | Screw, Console (Replaces: 216423) | 10 |
|
$ 10.88 | ||||
| 012 | 215003 | Clip, Screw | 10 |
|
- | ||||
| 013 | 206421 | Relay-motor Reversing | 10 |
|
- | ||||
| 014 | 206824 | Relay, Spst 24vdc | 10 |
|
- | ||||
| 015 | WPW10131839 | Transformer (Replaces: 22001960) | 10 |
|
Immediately | $ 133.55 | |||
| 015 | WP90767 | Screw (Replaces: 211294) | 10 |
|
Immediately | $ 7.82 | |||
| 015 | WP90767 | Screw (Replaces: Y313559) | 10 |
|
Immediately | $ 7.82 | |||
| 016 | M0282005 | Locknut, Control Board (Replaces: 912077) | 10 |
|
$ 7.85 | ||||
| 016 | 22002954 | Deflector, Water (w/adhesive) | 10 |
|
- | ||||
| 016 | 22004048 | Commercial D.c. Control Board | 10 |
|
- | ||||
| 016 | 33001204 | Standoff, Circuit Board | 10 |
|
- | ||||
| 017 | WP90767 | Screw, Water Level Switch (Replaces: 211294) | 10 |
|
Immediately | $ 7.82 | |||
| 018 | 22004397 | Harness, Wire | 14 |
|
- | ||||
| 018 | 22004057 | Wire Harness | 10 |
|
- | ||||
| 019 | 214610 | Bumper, Lid | 10 |
|
- | ||||
| 020 | WPW10131114 | Cover, Display (Replaces: 22001962) | 10 |
|
$ 47.54 | ||||
| 021 | WP489128 | Screw, Ground Wire (Replaces: 210186) | 10 |
|
$ 10.88 | ||||
| 022 | 215526 | Screw, Control Board | 10 |
|
- | ||||
| 023 | WPW10131115 | Bezel (Replaces: 22001976) | 10 |
|
$ 8.48 | ||||
| 024 | NLA | Kit, Surge Suppressor | 10 |
|
- | ||||
| 025 | 22001973 | Harness, Pr Service | 10 |
|
- | ||||
| 025 | 33001856 | Reader Harness Kit (16``) | 10 |
|
- |
