SELECT A DIAGRAM
01 - Oven

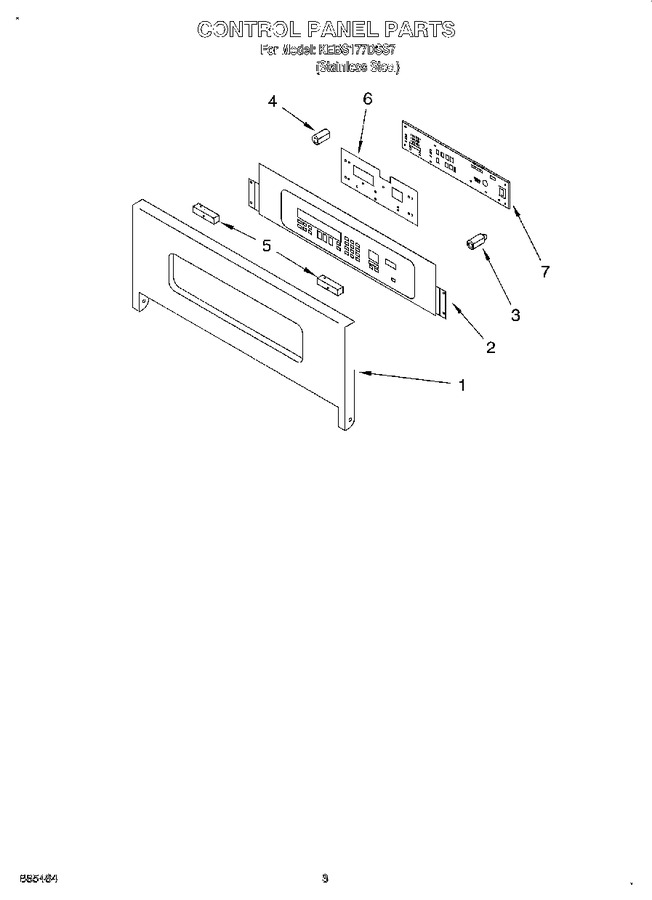

02 - Control Panel, Literature
03 - Oven Door
04 - Internal Oven
05 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451790 | Control Panel Assy. |
|
- | |||||
| 2 | 4452362 | Switch, Membrane |
|
- | |||||
| 3 | 4452248 | Insulation, Board |
|
- | |||||
| 4 | 4159465 | Screw |
|
- | |||||
| 4 | 4452249 | Insulation, Board Support |
|
- | |||||
| 5 | 4452260 | Spacer, Foam |
|
- | |||||
| 6 | 4452345 | Insulator, Dialectric |
|
- | |||||
| 7 | 3400406 | Screw |
|
- | |||||
| 7 | 4451845 | Microcomputer |
|
- | |||||
| LIT4450410 | Installation Instructions |
|
- | ||||||
| LIT3191638 | Safer Cooking Tips |
|
- | ||||||
| LIT4449264 | Guide, Easy Set |
|
- | ||||||
| LIT4451876 | Tech Sheet |
|
- | ||||||
| LIT4449066 | Cookbook T/c |
|
- | ||||||
| LIT4450571 | Use & Care Guide |
|
- | ||||||
| LIT4450841 | Installation, Mwo Trim Kit |
|
- | ||||||
| LIT3192225 | Installation/ Undercounter |
|
- |
