SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel

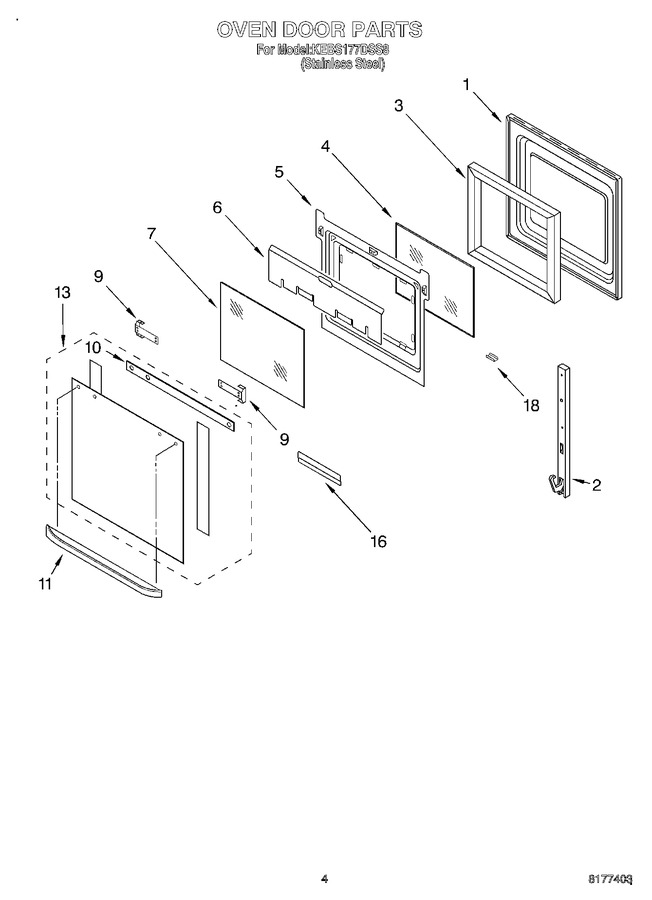

03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451718		Door Liner		Appelez-nous	-
2	WP4455525		Hinge, Door   (Replaces: 4454948)			Immediately	$ 88.29
2	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
3	4451721		Insulation, Door				$ 37.62
4	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
5	4451670		Retainer, Glass		Appelez-nous	-
6	4450361		Shield, Heat		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	WP4449257		Glass, Inner (2) For Bs Model   (Replaces: 4449257)			Immediately	$ 208.31
9	4452488		Bracket, Handle (left Hand)		Appelez-nous	-
9	4452487		Bracket, Handle (right Hand)		Appelez-nous	-
9	WPW10132940		Bracket, Handle (screw)   (Replaces: 3196184)				$ 10.12
10	4452325		Seal, Top				$ 32.70
11	4452087		Handle		Appelez-nous	-
13	4452315		Assy, Door Glass				$ 274.20
16	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
16	4451668		Retainer, Glass (2) For Bs Model		Appelez-nous	-
18	4451432		Clip, Retainer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
