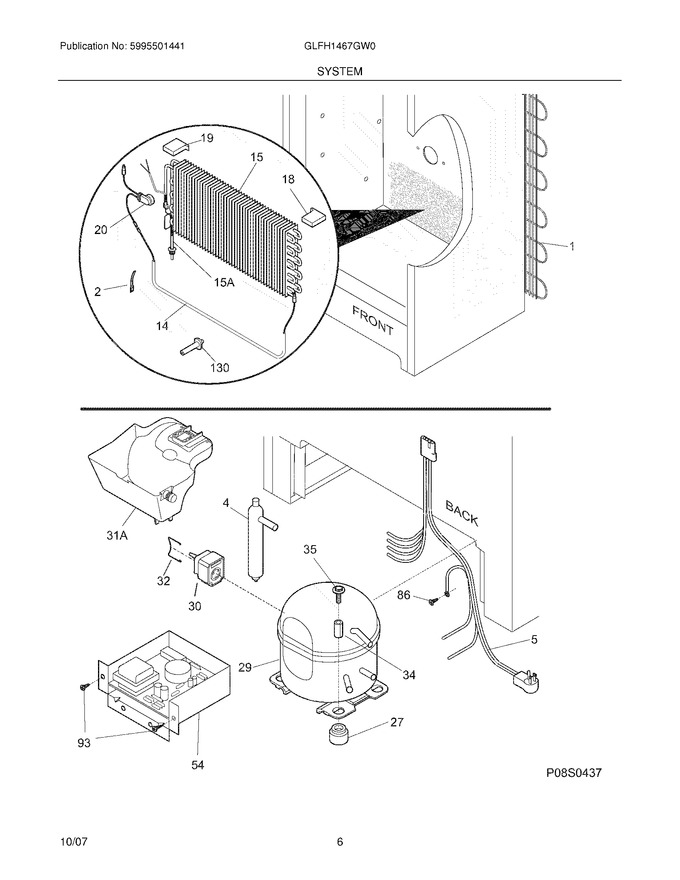

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 66.47
4	216987500		Drier-filter		Appelez-nous	-
14	5304496687		Heater-defrost   (Replaces: 216740000)				$ 108.68
15	297414800		Evaporator   (Replaces: 216737400)				$ 161.44
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	297216600		Thermostat,defrost   (Replaces: 216872200)			Immediately	$ 30.58
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 14.46
30	297051004		Controller,compressor				$ 51.82
32	297051100		Clamp,elec Cont Mtg ,compressor		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5304460607		Screw,ind Hex Sems ,1/4-28 Unfx ,compressor		Appelez-nous	-
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 15.17
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 12.05
130	216486800		Support,evaporator Mtg		Appelez-nous	-
15A	297348600		Heat Exchanger   (Replaces: 216976200)				$ 134.15
31A	216994102		Pan-drain   (Replaces: 216994100)				$ 33.92
F1	5300123788		Condenser				$ 706.44
F29	5304507765		Compressor,w/grommets ,w/o Electricals   (Replaces: 297068207)			Immediately	$ 752.48
F5	297025900		Harness-main				$ 22.30
F54	216979700		Electronics,high Voltage				$ 399.22
NI	216502500		Sleeve,suction Line				$ 12.05
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	297018400		Thermistor			Immediately	$ 88.36
