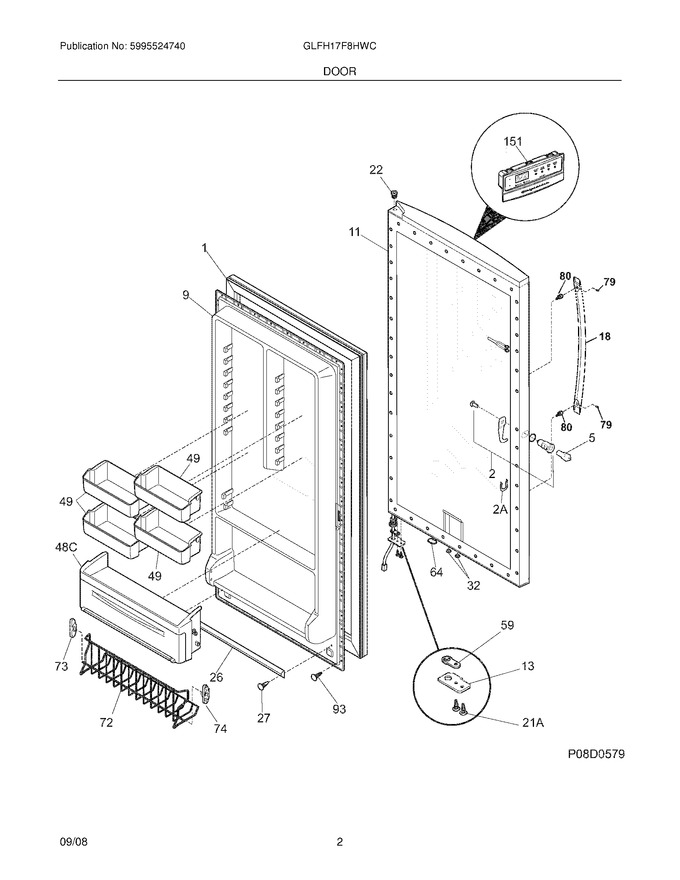

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507200		Gasket-door,white   (Replaces: 216522309)			Immediately	$ 209.10
5	297147700		Key,lock			Immediately	$ 8.41
9	297185800		Panel-inner Door,frzr				$ 147.95
11	297203801		Panel-outer Door,white		Appelez-nous	-
13	297154800		Door Stop,rh				$ 12.23
18	297437820		Handle-door,white   (Replaces: 241930102)				$ 124.43
22	216970802		Bearing,hinge W/o`ring ,top   (Replaces: 216970800)			Immediately	$ 12.05
26	216524201		Gasket,secondary   (Replaces: 216524200)				$ 55.13
27	5303212828		Clip,panel Mtg				$ 18.48
32	5309950074		Valve, Breather				$ 12.48
49	297187201		Bin-door,2-liter				$ 77.75
59	216974500		Bearing,door Closer				$ 17.27
64	216403700		Plug-button,hole Filler ,door Base				$ 64.58
72	297186700		Shelf,tilt Out ,wire		Appelez-nous	-
73	216513900		End Cap,shelf ,lh ,tilt-out				$ 54.29
74	216514000		End Cap,shelf ,rh ,tilt-out				$ 53.39
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 36.67
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 20.67
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 12.05
21A	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,door Stop/hng   (Replaces: 216850900)				$ 14.96
2A	297090900		Clip,spring				$ 12.05
48C	297350101		Bin-door,w/lid   (Replaces: 297186400)			Immediately	$ 154.70
F151	297235200		Control-electronic,assy ,white/chrome ,115v   (Replaces: 297241906)			Immediately	$ 376.66
F2	297090000		Lock Assy		Appelez-nous	-
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 139.81
NI	240537301		Nut-anchor,door Hdl Screw				$ 12.60
