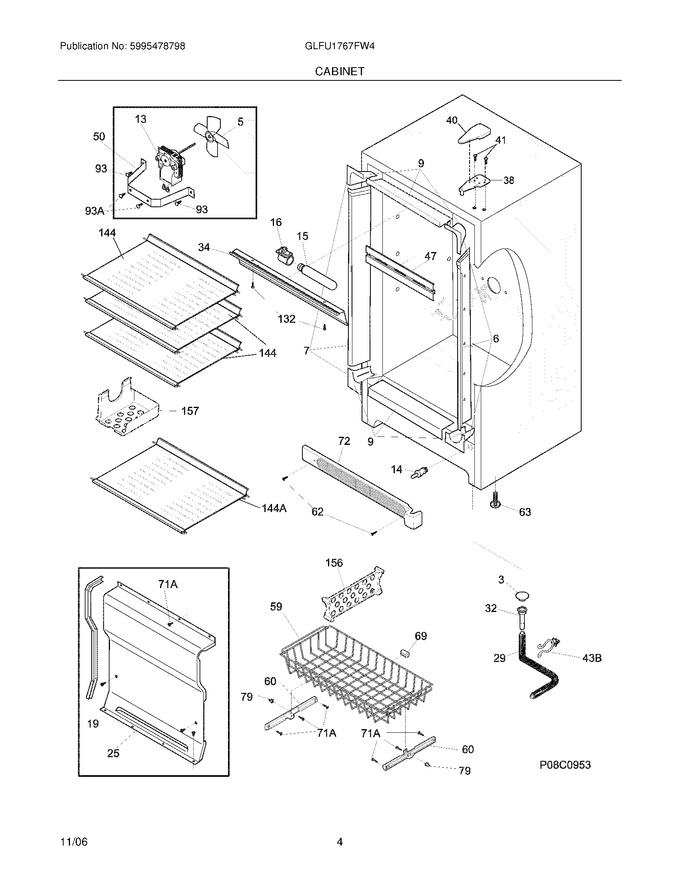

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 69.08
6	216604200		Breaker Kit W/corners				$ 227.12
7	216603700		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 61.47
14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 40.75
15	5304517886		Light Bulb/lamp,long ,blue Tint ,40 W ,120v   (Replaces: 216988100)			Immediately	$ 81.18
16	297139500		Socket,light/lamp,25 W   (Replaces: 216817601)				$ 20.09
19	216204900		Gasket, Evap Cover				$ 51.45
25	297098801		Cover-evaporator		Appelez-nous	-
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 17.67
32	5304511843		Drain   (Replaces: 5308005500)				$ 15.27
34	216816221		Shield-light		Appelez-nous	-
38	216939100		Hinge-upper				$ 59.54
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 14.06
41	216936800		Screw-hinge,12-24x.700 Hwh		Appelez-nous	-
47	297192903		Plate,baffle ,snap Fit   (Replaces: 216661600)			Immediately	$ 28.12
50	216394050		Bracket,fan Motor Mount   (Replaces: 216394000)				$ 25.28
59	297093100		Basket,(2)		Appelez-nous	-
60	297013500		Slide,basket ,(4)				$ 43.31
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 14.96
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
69	5305878546		Bumper-basket,(4)				$ 8.03
72	297036907		Grille/kickplate,32`` ,white   (Replaces: 297036900)				$ 43.65
79	301036		Nut-insert   (Replaces: 3017666)				$ 17.67
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 12.05
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
144	216922300		Shelf-assy,fixed,glass ,(3) ,complete		Appelez-nous	-
156	297071800		Divider,basket ,(2)		Appelez-nous	-
157	297071900		Shelf,small Items				$ 34.07
43B	297315800		Clip   (Replaces: 297048400)				$ 11.25
71A	5304416289		Screw,ph Truss Head ,8-18ab X 0.47 ,evap Panel		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 14.46
F144	216922301		Shelf-assy,fixed,glass ,complete		Appelez-nous	-
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 54.48
NI	297088700		Guide-electronic Control		Appelez-nous	-
NI	216502400		Grommet-shelf Mtg				$ 18.48
NI	216795410		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 14.96
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 65.73
NI	216912400		Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2)		Appelez-nous	-
