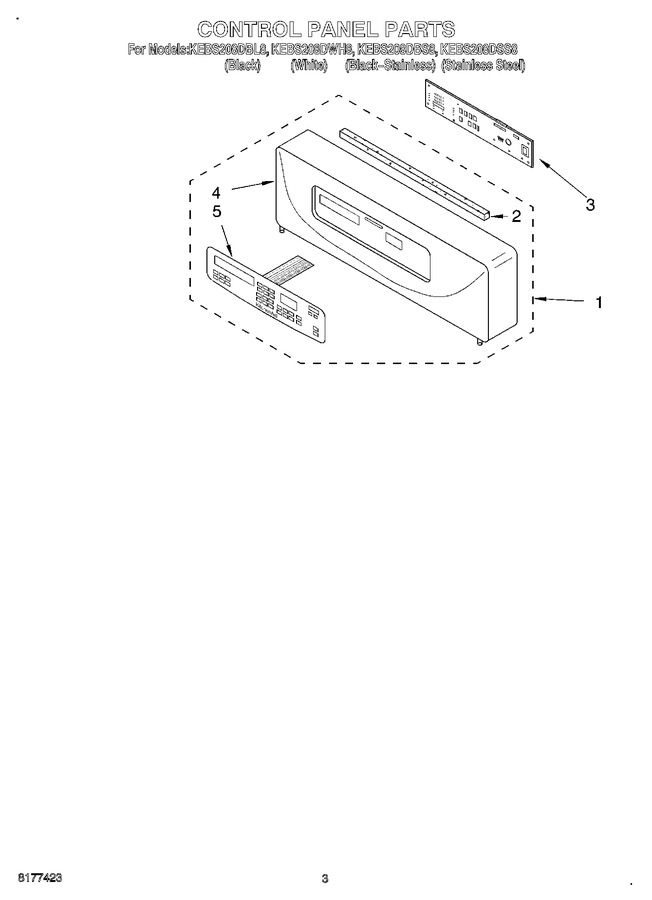

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451949 | Control Panel Assy W/membrane, Switch (black & Black Stainless) |
|
- | |||||
| 1 | 4451950 | Control Panel Assy W/membrane, Switch (white Model N/a Stainless Steel) |
|
- | |||||
| 2 | 4451034 | Gasket, Control Panel |
|
- | |||||
| 3 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 3 | 4451986 | Microcomputer |
|
- | |||||
| 4 | 4451791 | Panel, Control Stainless Steel |
|
- | |||||
| 5 | 4452379 | Membrane Switch Stainless Steel |
|
- | |||||
| LIT4451952 | Use & Care Guide |
|
- | ||||||
| LIT4450411 | Installation Instructions |
|
- | ||||||
| LIT3191638 | Safer Cooking Tips |
|
- | ||||||
| LIT4449264 | Easy Set Guide |
|
- | ||||||
| LIT4451879 | Tech Sheet |
|
- | ||||||
| LIT4449066 | Cookbook, T/c Oven |
|
- |
