| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

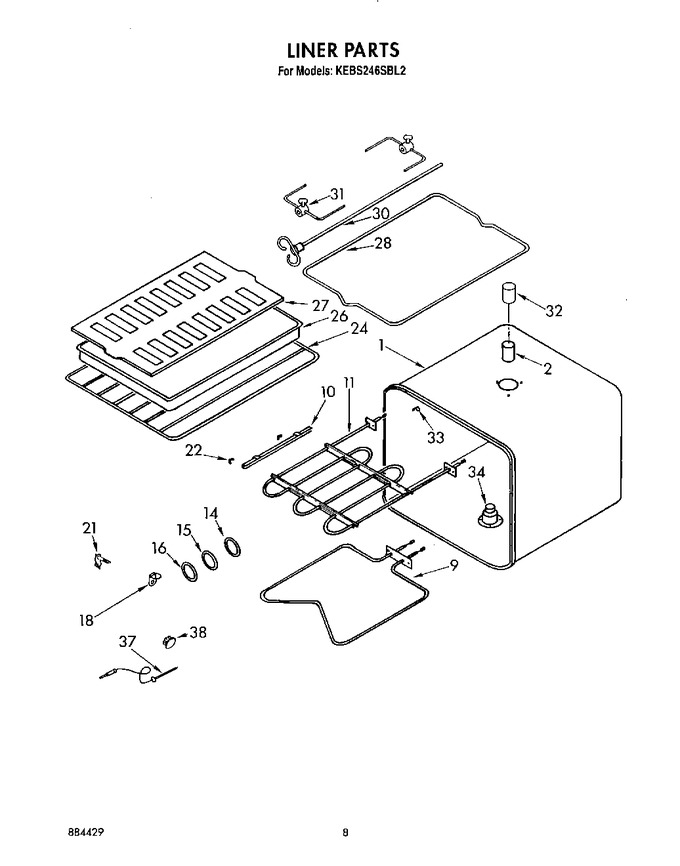

| 1 | 3178746 | Liner, Oven (upper & Lower) |
|
- | |||||
| 2 | 4168126 | Tube, Vent |
|
- | |||||
| 2 | 4159445 | Screw (3) |
|
- | |||||
| 9 | 4159445 | Screw (4) |
|
- | |||||
| 9 | WP3177420 | Element, Bake (Replaces: 3177420) |
|
$ 152.45 | |||||
| 10 | 4159445 | Support, Element (screw (4)) |
|
- | |||||
| 10 | 4168218 | Support, Element (left Side) |
|
- | |||||
| 10 | 4168217 | Support, Element (right Side) |
|
- | |||||
| 11 | 4159465 | Screw (4) |
|
- | |||||
| 11 | 4164185 | Element, Broil |
|
- | |||||
| 14 | 4166868 | Gasket, Lens |
|
- | |||||
| 15 | 4166866 | Lens, Light |
|
- | |||||
| 16 | 4167938 | Retainer, Lens |
|
- | |||||
| 16 | 4159445 | Screw (3) |
|
- | |||||
| 18 | 4167277 | Nut |
|
- | |||||
| 18 | 4167266 | Cover, Jack |
|
- | |||||
| 21 | 4163971 | Jack, Probe |
|
- | |||||
| 21 | 4173084 | Nut (2) |
|
- | |||||
| 21 | 4163975 | Gasket |
|
- | |||||
| 21 | 4173438 | Washer |
|
- | |||||
| 22 | 4173275 | Clip, Bulb (2) |
|
- | |||||
| 24 | 4168400 | Rack, Oven |
|
- | |||||
| 26 | 4396923 | Pan, Broil (Replaces: 4164250) |
|
Immediately | $ 57.82 | ||||
| 27 | 4396923 | Grid, Broil (Replaces: 4164251) |
|
Immediately | $ 57.82 | ||||
| 28 | 4168411 | Rotisserie Rack |
|
- | |||||
| 30 | 4168724 | Rotisserie Spear |
|
- | |||||
| 31 | 4166352 | Rotisserie Skewer |
|
- | |||||
| 32 | 4168126 | Extension, Tube |
|
- | |||||
| 33 | 4168203 | Capillary Cover |
|
- | |||||
| 34 | 4168491 | Smoke Eliminator (vent Tube Lower Oven) |
|
- | |||||
| 34 | 4168492 | Smoke Eliminator (upper Oven) |
|
- | |||||
| 37 | 4167267 | Probe, Meat |
|
- | |||||
| 38 | 242829 | Red 12 Ga. 150~c Rating |
|
- | |||||
| 38 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 38 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | |||||
| 38 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 38 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 38 | 832985 | Rack, Cooking (bi-level) |
|
- | |||||
| 38 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 51.44 | |||||
| 38 | 4159120 | Plug Button (3/8`` Hole) |
|
- | |||||
| 38 | 4159122 | Plug Button (5/8`` Hole) |
|
- | |||||
| 38 | 350806 | 18 Ga. 80~c Rating (yellow) |
|
- | |||||
| 38 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
| 38 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 38 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 38 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 38 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 38 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 38 | 242826 | White 14 Ga. 150~c Rating |
|
- | |||||
| 38 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 38 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 38 | 282831 | Red 12 Ga. 200~c Rating |
|
- | |||||
| 38 | 242832 | Yellow 12 Ga. 200~c Rating |
|
- | |||||
| 38 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 38 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | |||||
| 38 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 38 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 117.11 | |||||
| 38 | WP261869 | Citrine White (microwave Liner) (Replaces: 261869) |
|
$ 26.50 | |||||
| 38 | 242860 | Blue Gray |
|
- | |||||
| 38 | 242757 | Paint, Touch-up 1 Oz. (oven Liner) (light Gray) |
|
- | |||||
| 38 | 8212471 | Bronzetone (Replaces: 242756) |
|
Immediately | $ 83.07 | ||||
| 38 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 38 | 261890 | Harvest Gold |
|
- | |||||
| 38 | 285365 | Toast |
|
- | |||||
| 38 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 38 | 786020 | Paint, Pressurized Spray (12 Oz.) (black) |
|
- | |||||
| 38 | 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
$ 57.04 | |||||
| 38 | 350942 | Primer |
|
$ 89.66 | |||||
| 38 | 350941 | Leveler (primer) |
|
- | |||||
| 38 | 261900 | Citrine White 5 Oz. (m/w Liner) |
|
$ 57.04 | |||||
| 38 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 38 | 978883 | Almond |
|
- | |||||
| 38 | 261891 | Harvest Gold |
|
- | |||||
| 38 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 38 | 285368 | Platinum |
|
- | |||||
| 38 | 786032 | Ebony (microwave) |
|
- | |||||
| 38 | 978849 | Cleaner, (8oz.) Black Glass |
|
$ 15.82 | |||||
| 38 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 55.47 | ||||
| 38 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 55.47 | ||||
| 38 | 261582 | Grease |
|
- | |||||
| 38 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 63.51 | ||||
| 38 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 38 | WP75614 | Line, Splice (5) (Replaces: 309551) |
|
$ 49.34 | |||||
| 38 | 799832 | Kit. Porcelain Repair (white) |
|
- |
