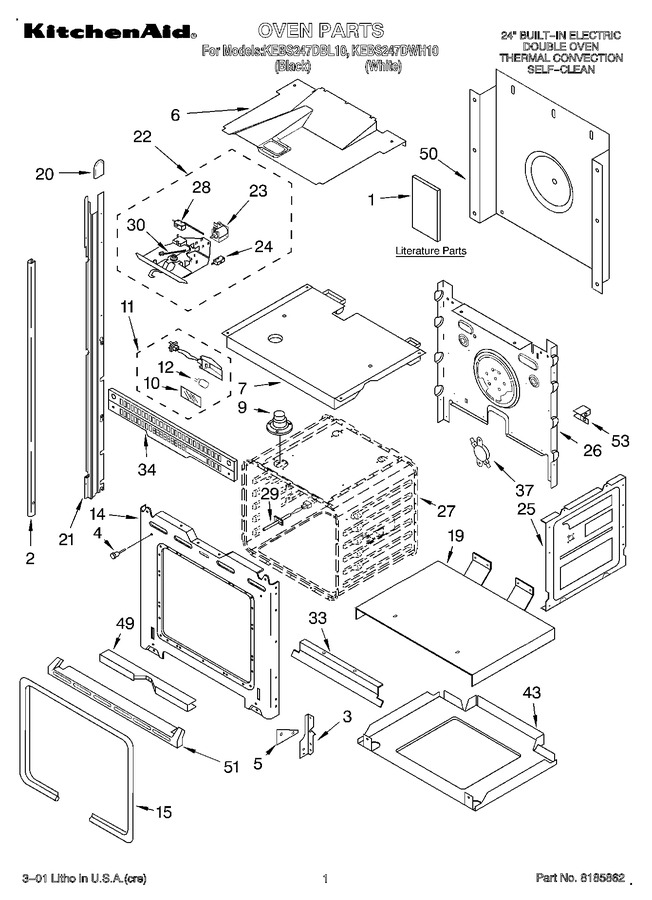

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4450409		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4451952		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT4449066		Literature Parts (cookbook (t/c Oven))		Appelez-nous	-
1	LIT4451879		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT4449264		Literature Parts (easy Set Guide)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	4450853		Trim, Side (lh Black)		Appelez-nous	-
2	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 7.56
2	4449041		Trim, Side (screw) (white Model)				$ 5.27
2	4450851		Trim, Side (right Hand) (white Model)		Appelez-nous	-
2	4450854		Trim, Side (left Hand)) (white Model)		Appelez-nous	-
2	4450850		Trim, Side (rh Black)		Appelez-nous	-
3	4455722		Reciever, Hinge (left Hand)				$ 37.47
3	4455723		Reciever, Hinge (right Hand)				$ 37.24
4	4448520		Bumper, Door				$ 21.19
5	WP4455509		Bracket, Support   (Replaces: 4455509)				$ 89.53
6	8302347		Divider, Vent   (Replaces: 4452199)		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
7	4455863		Top, Chassis   (Replaces: 4455284)				$ 112.00
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 116.63
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.02
10	4452163		Lens, Light				$ 12.33
11	WP4448972		Oven Light Assy   (Replaces: 4448972)				$ 109.40
11	4449748		Screw				$ 13.55
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 67.32
14	WP4450118		Nut   (Replaces: 4450118)				$ 7.95
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	9760754		Frame, Front   (Replaces: 4451738)				$ 126.34
15	WP4455380		Gasket, Door   (Replaces: 4455380)			Immediately	$ 166.47
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
19	4451476		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	814373		Rail, Side (right)   (Replaces: 4450581)				$ 226.52
21	814374		Rail, Side (left)   (Replaces: 4450582)				$ 226.89
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.48
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 7.56
22	4451896		Latch Assembly				$ 163.41
23	4452224		Solenoid		Appelez-nous	-
24	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
24	4452312		Microswitch N.c.				$ 90.43
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
26	4452232		Back, Chassis		Appelez-nous	-
28	4451426		Microswitch		Appelez-nous	-
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
29	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
30	4451537		Spring, Latch		Appelez-nous	-
33	4451615		Deflector, Vent		Appelez-nous	-
34	W10358914		Vent, Center   (Replaces: 4452265)		Appelez-nous	-
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
37	WP9759242		Thermostat (tod)   (Replaces: 4452223)			Immediately	$ 85.57
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
43	4450525		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 8.86
49	WP4449154		Screw   (Replaces: 4449154)				$ 7.56
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 142.92
51	WP3400832		Trim, Bottom (screw)   (Replaces: 3400832)			Immediately	$ 7.75
51	4448473		Trim, Bottom (black Model)		Appelez-nous	-
51	4448474		Trim, Bottom (white Model)		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.19
53	4449845		Bracket-support		Appelez-nous	-
53	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 180.21
53	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 180.61
