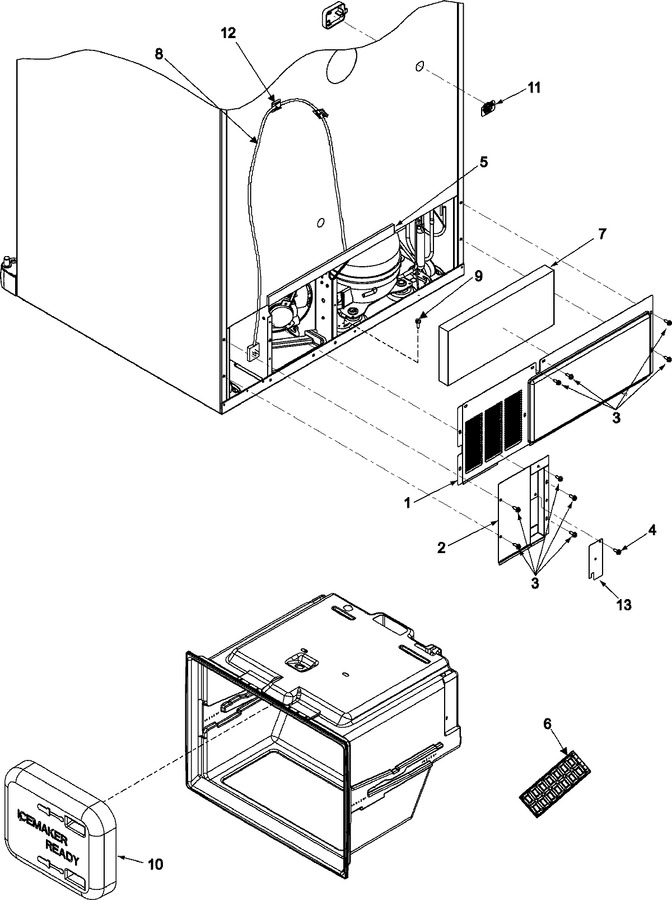

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67006101 | Cover, Mc Back | 10 |
|
$ 76.68 | ||||
| 2 | 67001097 | Cover, Water Valve | 10 |
|
- | ||||
| 3 | 67006425 | Screw, Sm | 10 |
|
Immediately | $ 7.30 | |||
| 4 | WP489128 | Screw (Replaces: 67006662) | 10 |
|
$ 11.40 | ||||
| 5 | B5759649 | Gasket, Mc Back | 10 |
|
- | ||||
| 6 | WP841180A | Tray, Ice Cube (Replaces: D7725402S) | 10 |
|
Immediately | $ 47.84 | |||
| 7 | 67003796 | Fiber, Acoustic | 10 |
|
$ 19.27 | ||||
| 8 | WP67006506 | Cord, Power (Replaces: 67006506) | 10 |
|
$ 27.74 | ||||
| 9 | 12992301 | Screw (Replaces: 67006433) | 10 |
|
$ 7.32 | ||||
| 10 | WP67001098 | Cover, Fill Tube/plug (Replaces: 67006915) | 10 |
|
$ 8.43 | ||||
| 11 | W11685757 | Label, Fill Tube (Replaces: 67005064) | 10 |
|
$ 7.41 | ||||
| 12 | WPM0104106 | Clip (Replaces: M0104106) | 10 |
|
$ 8.17 | ||||
| 13 | 12479901 | Plate, Cover | 10 |
|
- |
