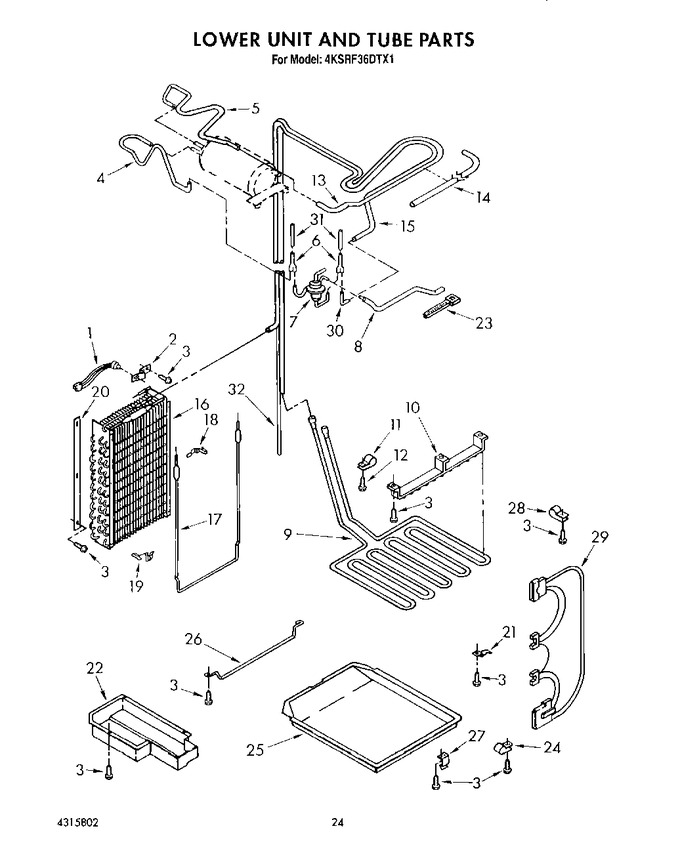

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4387499 | Defrost Bi-metal (Replaces: 1113405) |
|
$ 120.86 | |||||
| 2 | 1113043 | Clamp, Bi-metal |
|
- | |||||
| 3 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 3 | WP681414 | Screw (repair) (Replaces: 488908) |
|
Immediately | $ 7.85 | ||||
| 4 | 1113293 | Tube, Connect (suction) |
|
- | |||||
| 5 | 1113295 | Tube, Connect (discharge) |
|
- | |||||
| 6 | 1113296 | Tube, Flow Divider (2) |
|
- | |||||
| 7 | 1113292 | Valve, Fluid Control |
|
- | |||||
| 8 | 1113294 | Tube, Connect (drier) |
|
- | |||||
| 9 | 1113061 | Heater, Drain Pan |
|
- | |||||
| 10 | 1113062 | Hanger, Heater |
|
- | |||||
| 11 | 1113105 | Bracket, Heater |
|
- | |||||
| 12 | WP488163 | Screw, 8 X 1 (Replaces: 487534) |
|
$ 7.54 | |||||
| 13 | 1113256 | Tube, Discharge |
|
- | |||||
| 14 | 1113057 | Sleeve |
|
- | |||||
| 15 | 1113049 | Heat Exchanger |
|
- | |||||
| 16 | WPW10122127 | Evaporator (Replaces: 1113040) |
|
$ 341.83 | |||||
| 17 | 1113408 | Heater, Defrost |
|
- | |||||
| 18 | 1113048 | Clamp, Heater (2) |
|
- | |||||
| 19 | 549419 | Clamp, Heater (2) |
|
- | |||||
| 20 | 1112844 | Gasket, Evaporator |
|
- | |||||
| 21 | 1112713 | Clip, Connector |
|
- | |||||
| 22 | 1113070 | Guard, Hook-up |
|
- | |||||
| 23 | 851095 | Strap (7) |
|
- | |||||
| 24 | WP488729 | Clamp, Wiring (Replaces: 488993) |
|
Immediately | $ 7.79 | ||||
| 25 | 1113063 | Drain Pan |
|
- | |||||
| 26 | 1113064 | Bracket, Drain Pan |
|
- | |||||
| 27 | 1113065 | Clip, Pan (2) |
|
- | |||||
| 28 | 934011 | Clip, Water Tube |
|
- | |||||
| 29 | 1112702 | Wiring Harness, Water Valve |
|
- | |||||
| 30 | 1113384 | Tube, Connect (suction) |
|
- | |||||
| 31 | 1113297 | Tube (2) |
|
- | |||||
| 32 | 1113096 | Tube, Condenser Inlet |
|
- |
